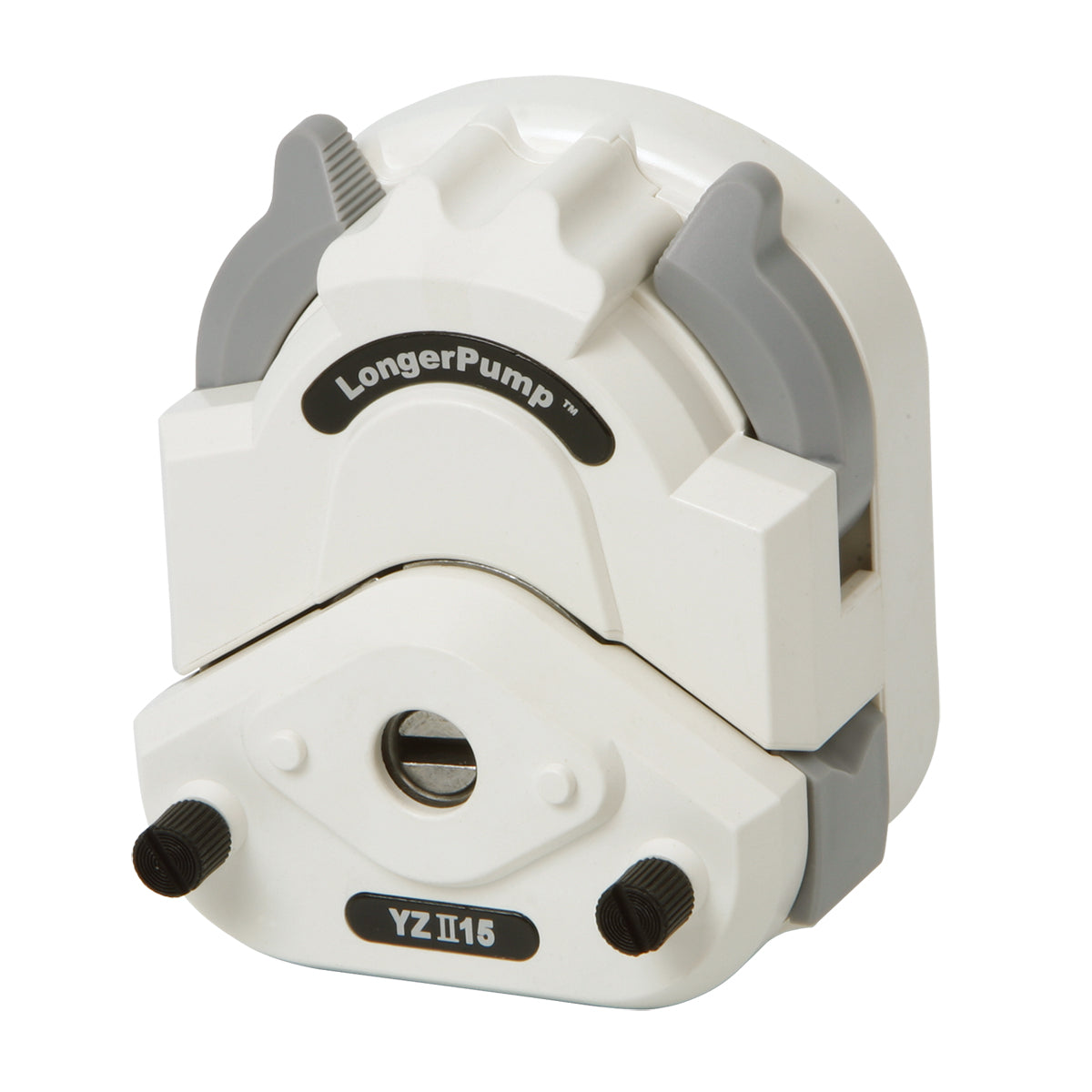

YZⅡ15,YZⅡ25 Easy-load Peristaltic Pump Head
YZⅡ15,YZⅡ25 Easy-load Peristaltic Pump Head
Couldn't load pickup availability
Product Instruction
Patent No.:200620026529.1. Change tubing easily and rapidly; Compact size. The tubing retention set is a linkage, It is convenient to load the tubing; Accept several tubing sizes for a wide flow range; The rollers adopt high quality materials and has good wearing property; The housing material is PESU. It has perfect rigidity and structure property. It is stable and autoclavable (200°C)
Flow rates：-≤2000ml/min
Max. Number of Channels：1
Main Functions and Features
Tubing Loading Comparison:
Technical Specifications
Dimensional Drawing:
Other parameters
| Model | Roller Number | Speed (rpm) |
Tubing | Max Flowrate (mL/min) |
Weight (kg) |
| YZⅡ15 | 3 | 600 | 13# 14# 19# 16# 25# 17# 18# | 2200 | 0.35 |
| YZⅡ25 | 15# 24# 35# 36# | 3000 |
Product Instruction
Patent No.:200620026529.1. Change tubing easily and rapidly; Compact size. The tubing retention set is a linkage, It is convenient to load the tubing; Accept several tubing sizes for a wide flow range; The rollers adopt high quality materials and has good wearing property; The housing material is PESU. It has perfect rigidity and structure property. It is stable and autoclavable (200°C)
Flow rates：-≤2000ml/min
Max. Number of Channels：1
Main Functions and Features
Tubing Loading Comparison:
Technical Specifications
Dimensional Drawing:
Other parameters
| Model | Roller Number | Speed (rpm) |
Tubing | Max Flowrate (mL/min) |
Weight (kg) |
| YZⅡ15 | 3 | 600 | 13# 14# 19# 16# 25# 17# 18# | 2200 | 0.35 |
| YZⅡ25 | 15# 24# 35# 36# | 3000 |
