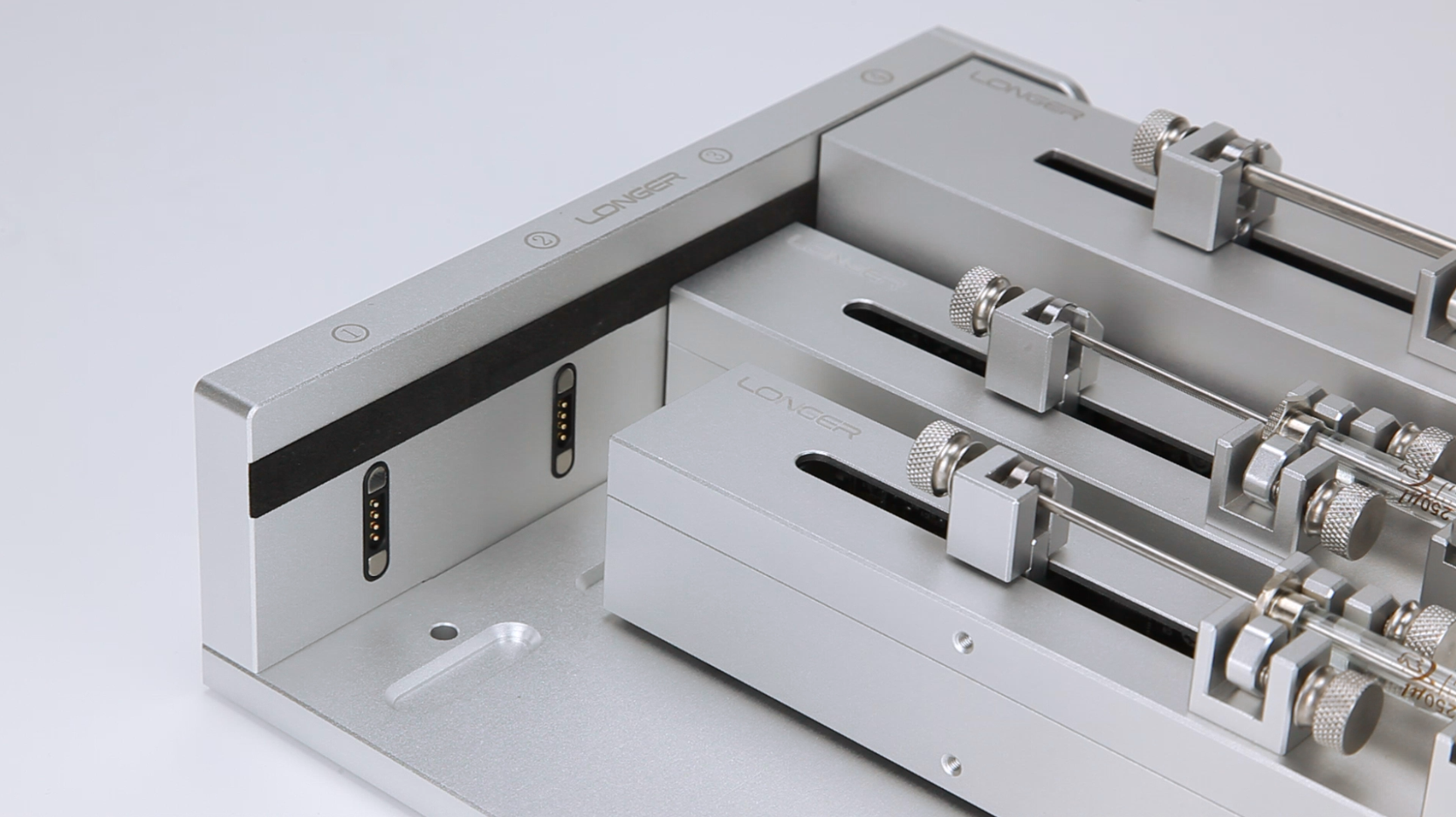

dLSP 501X Digital Split-type Syringe Pump
dLSP 501X Digital Split-type Syringe Pump
Regular price
$2,700.00
Regular price
Sale price
$2,700.00
Unit price
per
Couldn't load pickup availability
Main Functions and Features
Technical Specifications
| Product model | Drive unit | dLSP 501S | dLSP 501L | dLSP 501W |
| Controller | dLSP uC | |||
| Work mode | Infusion only, withdrawal only, infusion/withdrawal, withdrawal/infusion, programming (on PC software) | |||
| Display | 7 inch HD LCD | |||
| Control mode | Touch screen controller | Control 1-4 separated drive units with preset parameters through touch screen controller | ||
| Computer | Dedicated PC control software can control 10 drive units independently | |||
| PLC/ other controller | RS485 interface, Modbus RTU, can control 40 drive units independently | |||
| Stroke of the drive unit | 70mm | 95mm | ||
| Pusher advance per microstep | 0.095um/ustep | 0.099um/ustep | 0.098um/ustep | |
| Linear speed | 0.6096um/min-182.88mm/min | 0.635um/min-190.5mm/min | 0.625um/min-143.75mm/min | |
| Linear speed resolution | 0.6096um/min | 0.635um/min | 0.625um/min | |
| Linear travel accuracy | ≤±0.35%（when travel≥30% of the stroke） | |||
| Linear travel CV | 0.03% (rated travel) | |||
| Linear force (Rated) | 15N (the force can be set 20%-100%) | 30N (the force can be set 20%-100%) | 100N (the force can be set 20%-100%) | |
| Syringe | 0.5uL-250uL | 0.5uL-1000uL | 0.5uL-60mL | |
| Flow rate calibrate | Calibrate the user-defined syringe for better flow rate /dispensing volume accuracy and precision | |||
| Parameter method | Up to 100 parameter methods can be stored on the controller and can be imported/exported to USB flash drive | |||
| Programming function | Parameter configured based on work flow on PC software: infusion, withdrawal, delay, repeat, up to 16 steps | |||
| Screen lock | Prevent misoperationg | |||
| User access control | Three levels of user access (administrator, developer, operator), each user can have an exclusive password | |||
| Log record | Record the pump operation history, and can be exported to a USB flash drive | |||
| Electronic signature | There are electronic signature on the log record for FDA 21CFR Part11 compliance | |||
| Pump state when power up | The default state is stop, can be set to continue to run through communication commands | |||
| Fast forward/backward | Infuse or withdraw liquid at full speed | |||
| Controller dimensions (L X W X H) | 187mm*123mm*39mm | |||
| Controller weight | 0.6kg | |||
| Power supply for controller | AC 90V-260V/30W | |||
| Drive unit dimensions (L X W X H) | 170mm*35mm*58mm | 180mm*45mm*74mm | 235mm*103mm*91mm | |
| Drive unit weight | 0.31kg | 0.51kg | 1.65kg | |
| Power supply for drive unit | DC 24V/2W | DC 24V/3.6W | DC 24V/7.5W | |
Other parameters
| Product model | dLSP 501S | dLSP 501L | dLSP 501W | |
| Syringe | Syringe ID(mm) | Flow rate for reference | ||
| 0.5uL | 0.10 | 0.0048nL/min-1.435uL/min | 0.0050nL/min-1.495uL/min | - |
| 1uL | 0.15 | 0.0108nL/min-3.230uL/min | 0.0112nL/min-3.365uL/min | - |
| 2uL | 0.20 | 0.0191nL/min-5.742uL/min | 0.0199nL/min-5.982uL/min | - |
| 5uL | 0.35 | 0.0586nL/min-17.59uL/min | 0.0611nL/min-18.32uL/min | 0.0601nL/min-13.82uL/min |
| 10uL | 0.50 | 0.1196nL/min-35.89uL/min | 0.1246nL/min-37.39uL/min | 0.1227nL/min-28.21uL/min |
| 25uL | 0.80 | 0.3063nL/min-91.88uL/min | 0.3190nL/min-95.71uL/min | 0.3140nL/min-72.22uL/min |
| 50uL | 1.10 | 0.5790nL/min-173.7uL/min | 0.6032nL/min-180.9uL/min | 0.5937nL/min-136.5uL/min |
| 100uL | 1.46 | 1.020nL/min-306.0uL/min | 1.063nL/min-318.8uL/min | 1.046nL/min-240.5uL/min |
| 250uL | 2.30 | 2.531nL/min-759.4uL/min | 2.637nL/min-791.1uL/min | 2.595nL/min-596.9uL/min |
| 500uL | 3.25 | - | 5.265nL/min-1580uL/min | 5.182nL/min-1192uL/min |
| 1000uL | 4.61 | - | 10.594nL/min-3178uL/min | 10.43nL/min-2398uL/min |
| 2mL | 9.00 | - | - | 39.74nL/min-9.140mL/min |
| 5mL | 13.10 | - | - | 84.20nL/min-19.37mL/min |
| 10mL | 16.60 | - | - | 135.2nL/min-31.10mL/min |
| 20mL | 19.00 | - | - | 177.1nL/min-40.74mL/min |
| 30mL | 23.00 | - | - | 259.5nL/min-59.69mL/min |
| 60mL | 29.14 | - | - | 416.6nL/min-95.82mL/min |
