Langer Instruments

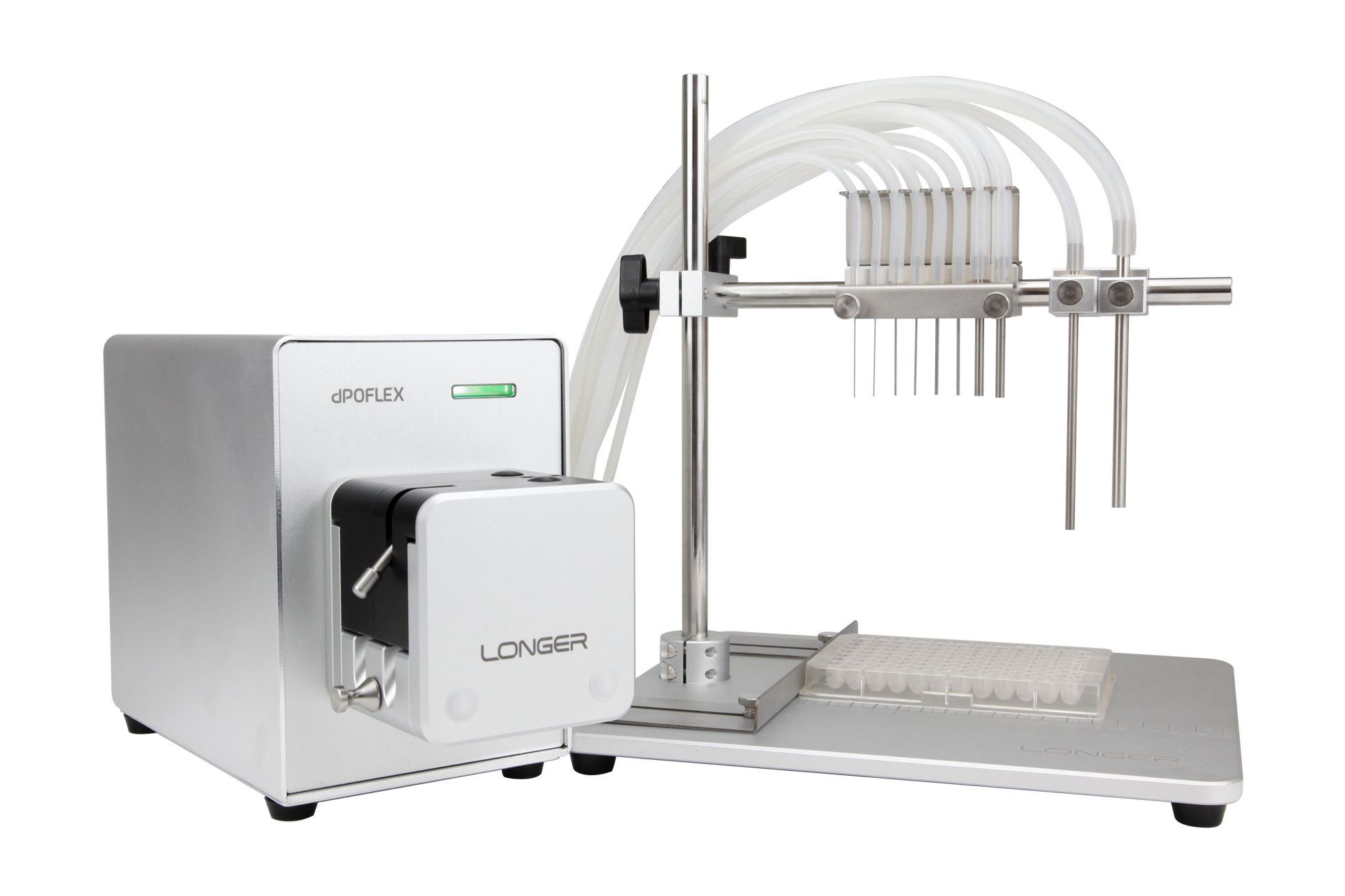

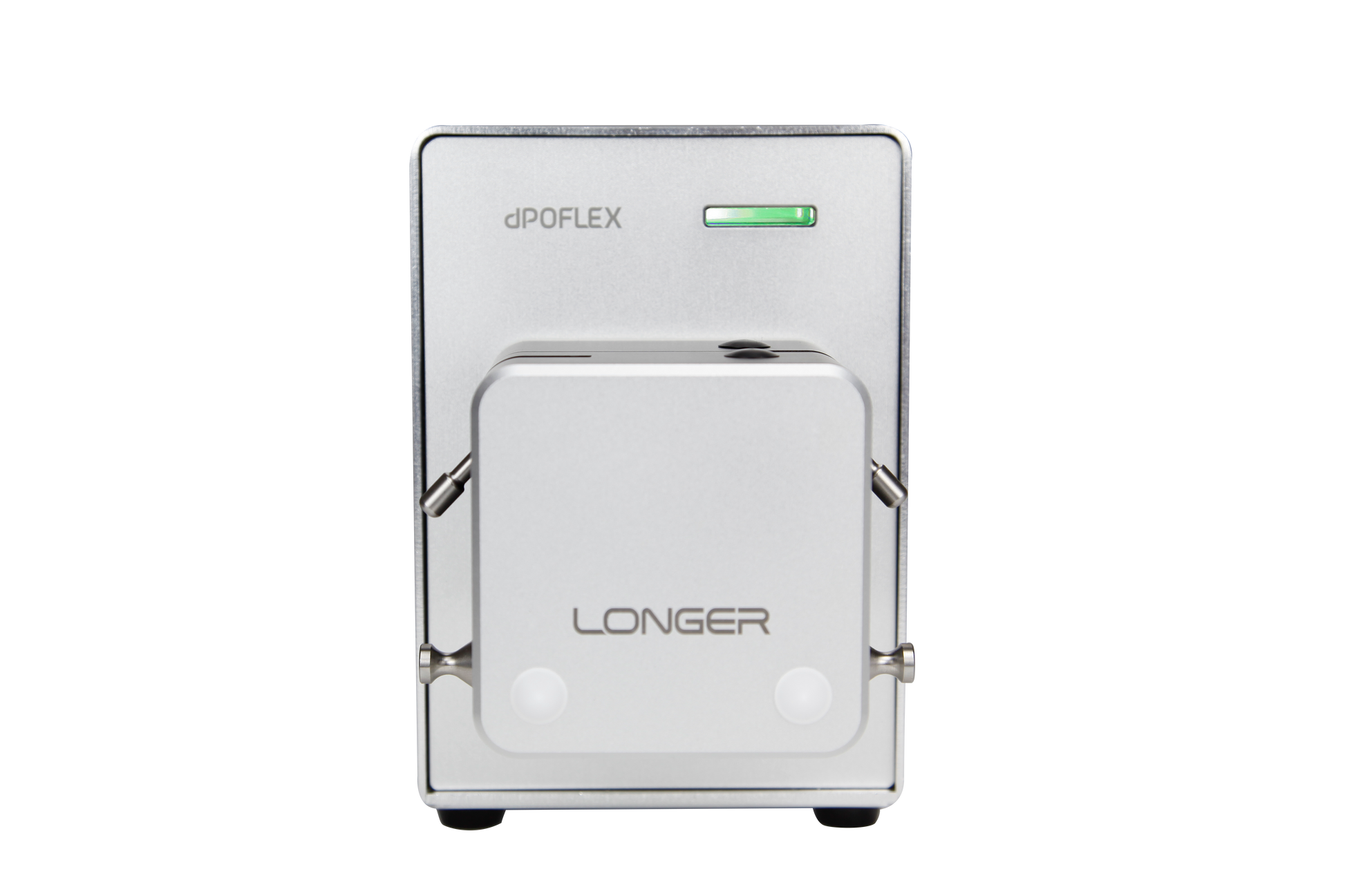

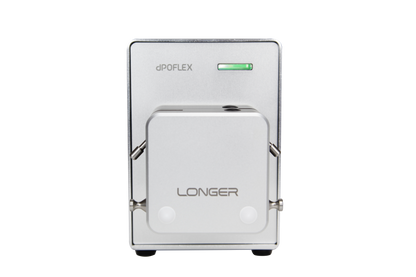

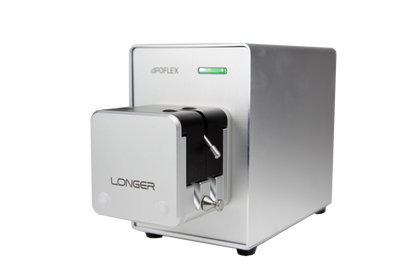

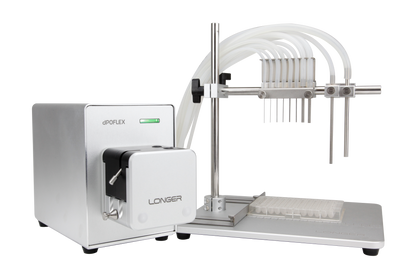

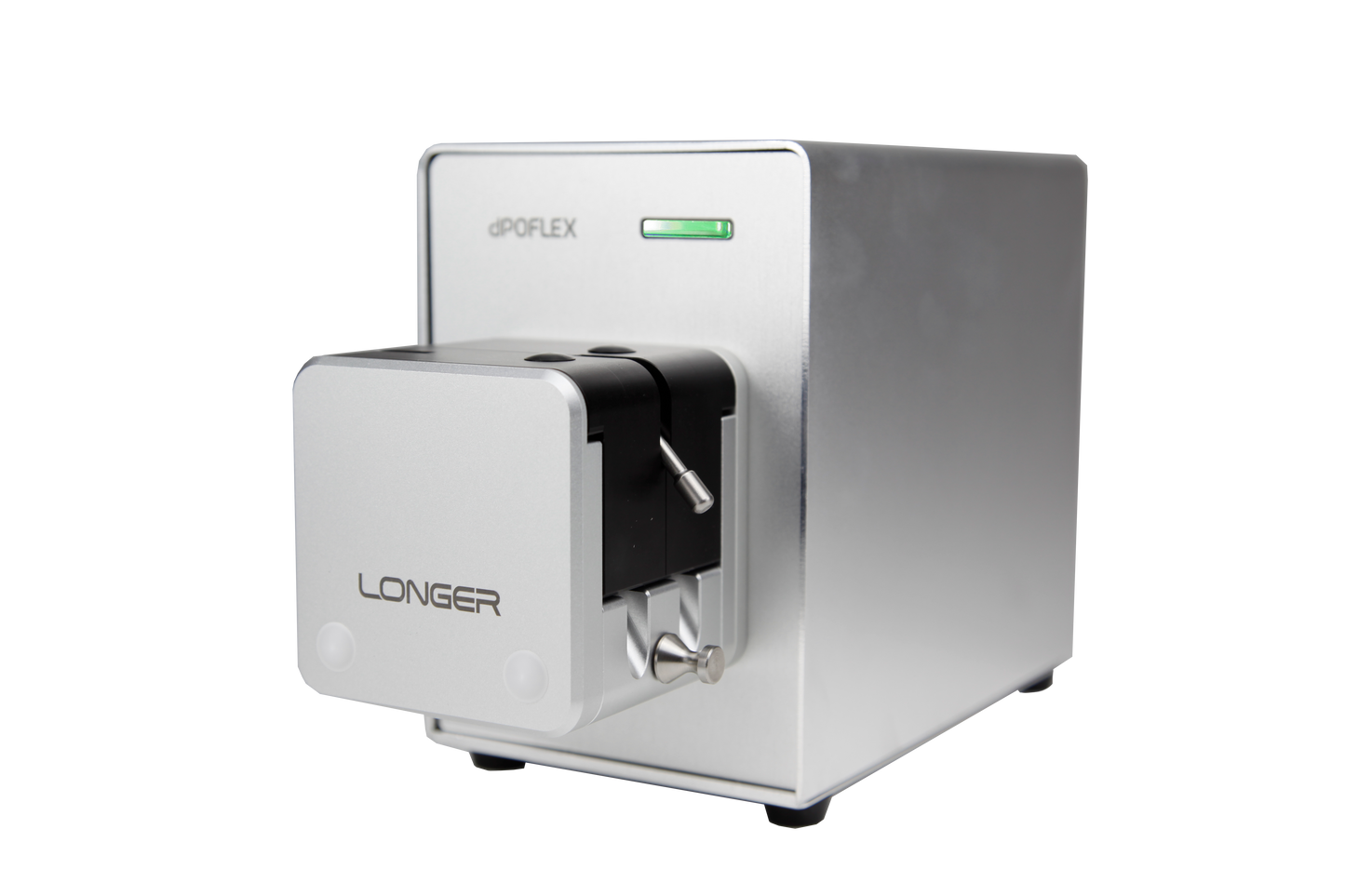

dPOFLEX PFU Peristaltic Pump Filling System
dPOFLEX PFU Peristaltic Pump Filling System
Regular price
$7,700.00
Regular price
Sale price
$7,700.00
Unit price
per
Couldn't load pickup availability
dPOFLEX PFU Filling Accuracy Better than ±1% ；Precise Filling of Micro Volumes as Low as 30μL；High Efficiency up to 120 Bottles/Minutes/Channel
Flow rates：0ml/min-1178ml/min
Max. Number of Channels：32
Applications：
Can be used independently as a small benchtop filling system, or integrated into semi-automatic systems or fully automated systems
Product Instruction：
▪Precise filling of micro-volume as low as 30μL, accuracy better than ±1%
▪Can be used independently as a small benchtop filling system, or integrated into semi-automatic systems or fully automated systems
▪The master controller can control up to 32 channels, which can be set with individual parameters
▪Three levels of user accesses, operation log, batch report with electronic signature, for FDA 21CFR Part 11 compliance
▪Can be used independently as a small benchtop filling system, or integrated into semi-automatic systems or fully automated systems
▪The master controller can control up to 32 channels, which can be set with individual parameters
▪Three levels of user accesses, operation log, batch report with electronic signature, for FDA 21CFR Part 11 compliance
Main Functions and Features
Micro-volume filling with high precision and efficiency to prevent costly overfilling
-Precise filling of micro volumes as Low as 30uL
-Filling accuracy better than ±1%
-Big flow rate up to 16mL/s
-High Efficiency up to 120 bottles/minutes/channel
7-inch high-resolution touchscreen has powerful functions, flexible configuration, and easy-to-use
-Intuitive graphic interface for a fantastic interactive experience
-Up to 500 recipes can be stored and recalled easily
-Three levels of user accesses(administrator, developer, operator), operation log, batch report( can be saved to USB flash drive or printed directly), and electronic signature, for GMP and FDA 21CFR Part 11 compliance

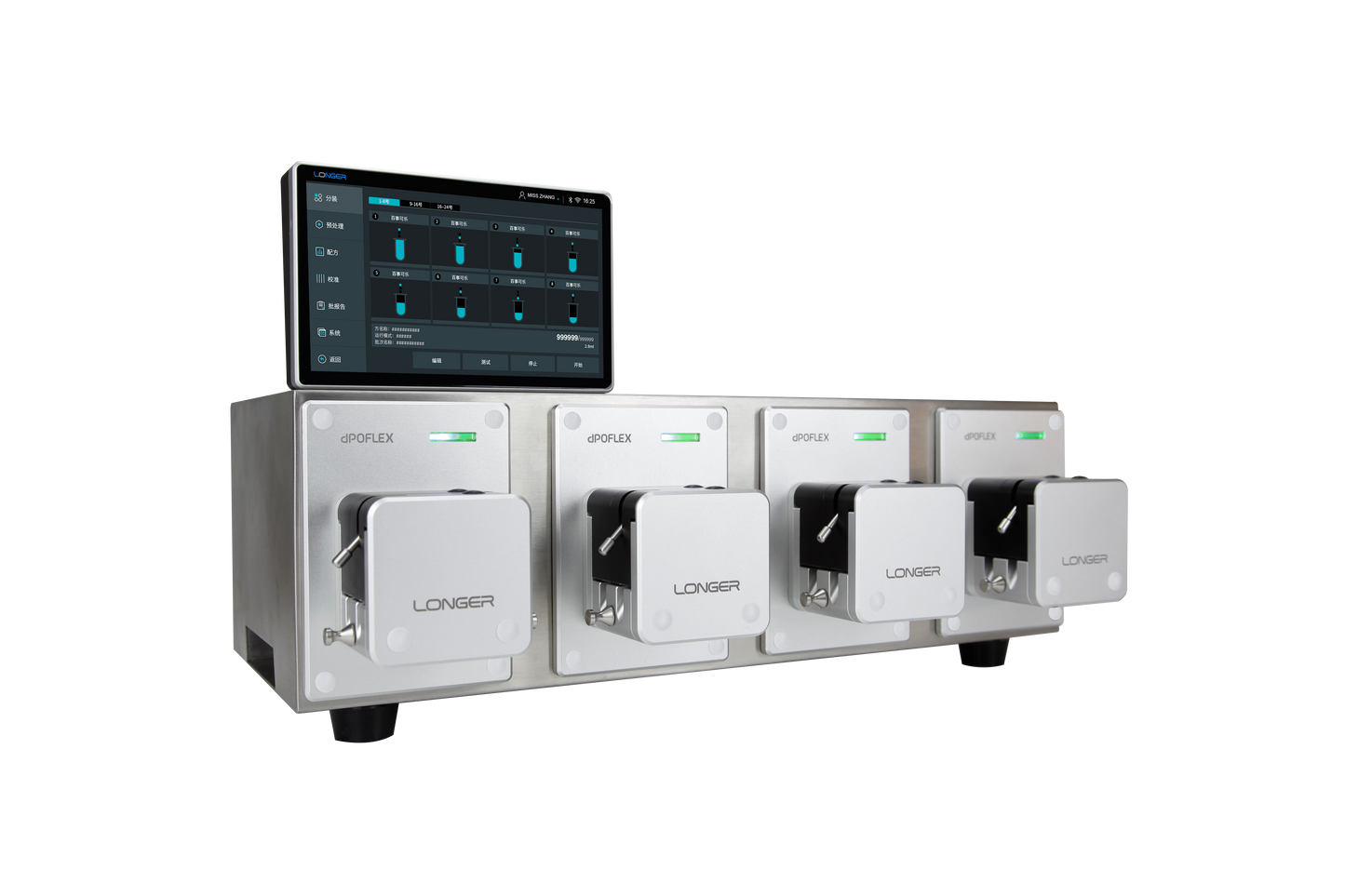

The master controller can control multiple units which can be set with individual parameters
- One PFC controller can control up to 32 channels
-In multi-channel system, each channel could be set with the same parameters or individual parameters
A variety of calibration modes to improve calibration efficiency and ensure filling accuracy
-PFC controller could automatically read the filled weight from a compatible balance
-The on-line calibration can be performed during the operation (95%-105% calibration range)
Filling unit PFU and system PFS can be integrated into semi-automatic systems or fully automated systems
-PFU can be remotely controlled via RS485 interface with Modbus RTU protocol, PFS can be remotely controlled via RS485 interface with Modbus RTU protocol or Ethernet with TCP/IP protocol
-Interfaces for start input, stop input, disable drive input, and malfunction status output, enable the automatic system integration

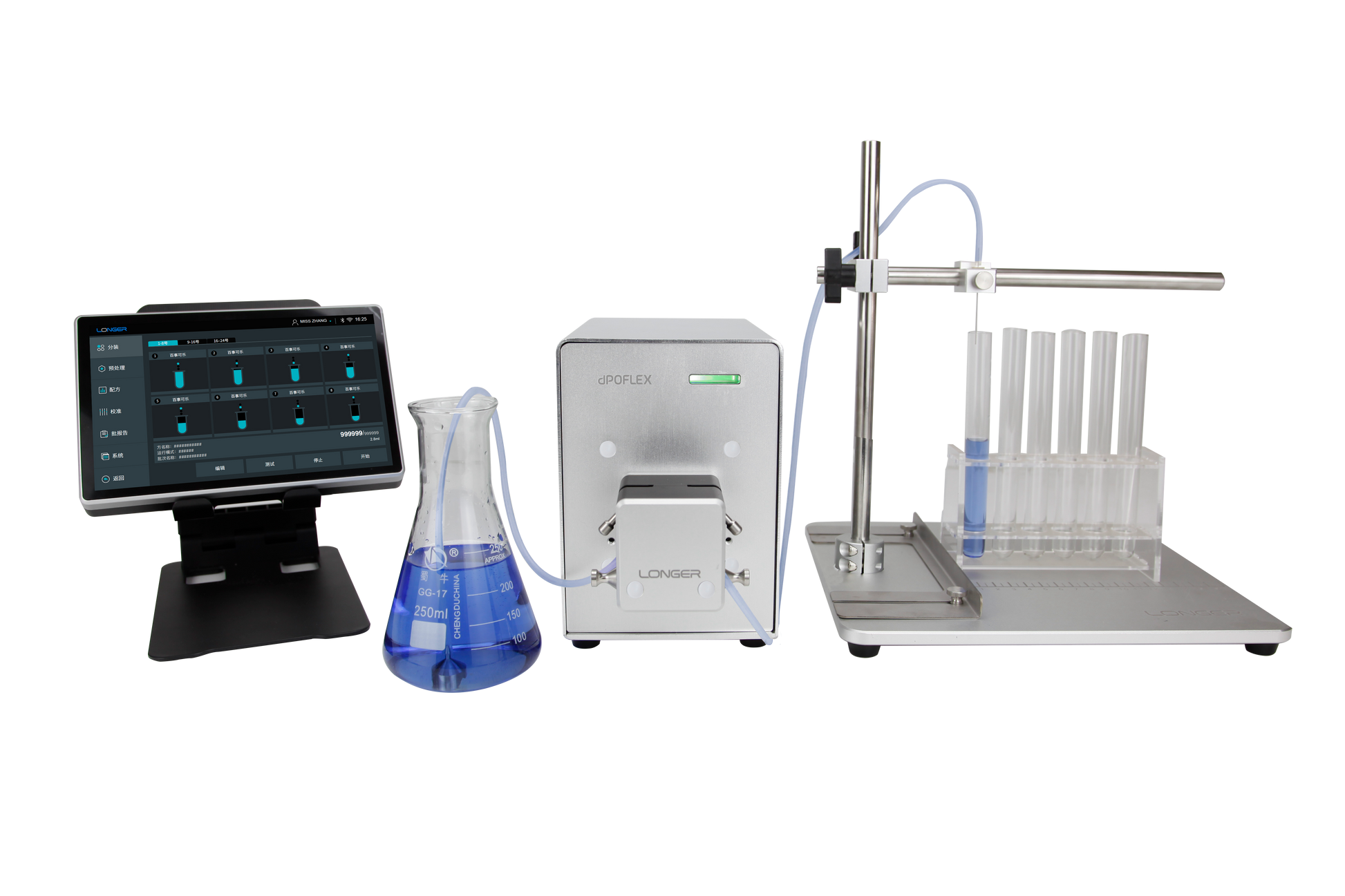

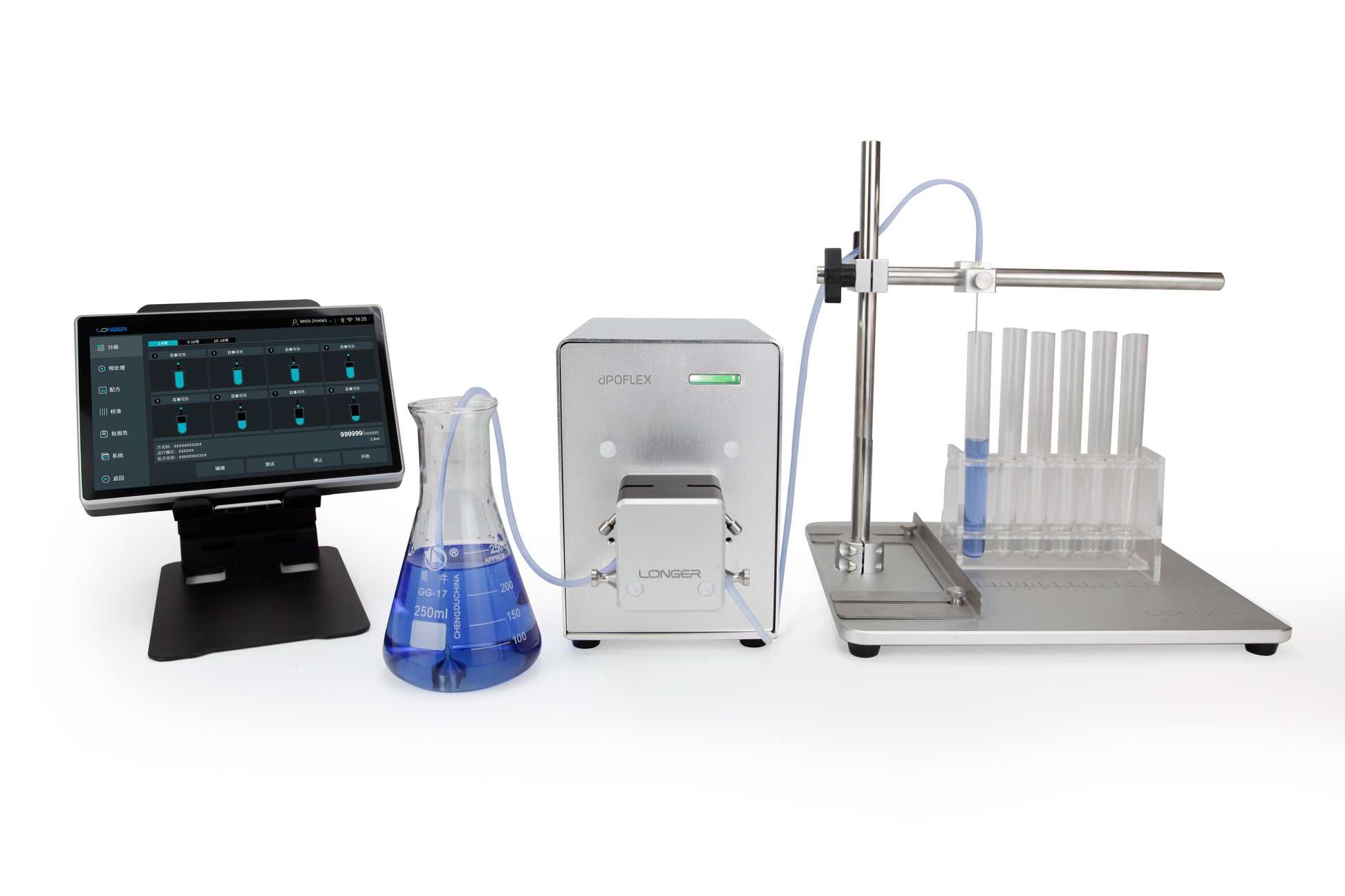

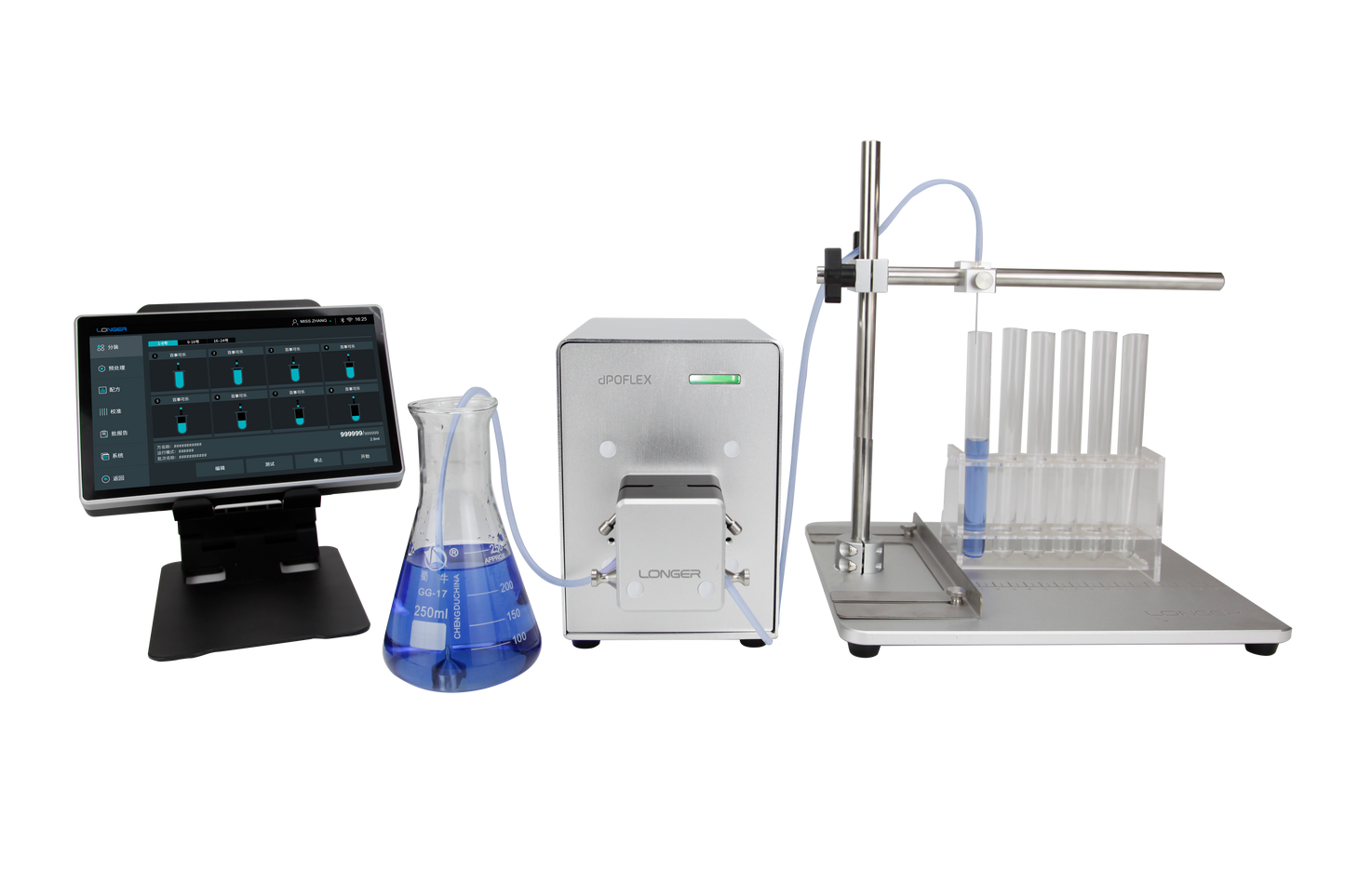

High-quality accessories help build a tabletop intelligent dispensing system
-Silicone tubing compliant with USP requirement
-Filling stand for different vials, bottles, or microtubes
-High-precision filling probe
-Footswitch
-Tubing weights set
-Printer
-Precise filling of micro volumes as Low as 30uL
-Filling accuracy better than ±1%
-Big flow rate up to 16mL/s
-High Efficiency up to 120 bottles/minutes/channel
7-inch high-resolution touchscreen has powerful functions, flexible configuration, and easy-to-use
-Intuitive graphic interface for a fantastic interactive experience
-Up to 500 recipes can be stored and recalled easily
-Three levels of user accesses(administrator, developer, operator), operation log, batch report( can be saved to USB flash drive or printed directly), and electronic signature, for GMP and FDA 21CFR Part 11 compliance
The master controller can control multiple units which can be set with individual parameters
- One PFC controller can control up to 32 channels
-In multi-channel system, each channel could be set with the same parameters or individual parameters
A variety of calibration modes to improve calibration efficiency and ensure filling accuracy
-PFC controller could automatically read the filled weight from a compatible balance
-The on-line calibration can be performed during the operation (95%-105% calibration range)
Filling unit PFU and system PFS can be integrated into semi-automatic systems or fully automated systems
-PFU can be remotely controlled via RS485 interface with Modbus RTU protocol, PFS can be remotely controlled via RS485 interface with Modbus RTU protocol or Ethernet with TCP/IP protocol
-Interfaces for start input, stop input, disable drive input, and malfunction status output, enable the automatic system integration
High-quality accessories help build a tabletop intelligent dispensing system
-Silicone tubing compliant with USP requirement
-Filling stand for different vials, bottles, or microtubes
-High-precision filling probe
-Footswitch
-Tubing weights set
-Printer
Technical Specifications
Pump head: PFH01(microliter pump head)、PFH02 (milliliter pump head)
Tubing: Silicone tubing and tubing kits
Filling volume: 1μL-99.99L
Filling accuracy: better than ±1%
Filling precision: CV<0.5%
Filling time: 0.1seconds-999.9hours
Filling cycle: 0-999999 (0 means unlimited)
Interval time: 0.1s-999.9s
Back suction parameter: 0-30
Working direction: Clockwise
Calibration: Manual input calibration, balance reading calibration or online ratio calibration, with volume or mass data
Display: 7 inch touch screen, Chinese or English can be set
Work mode: Single channel filling, multi-channel filling with the same parameters or individual parameters
Access management and password protection: Three levels of user accesses (administrator, developer, operator), each user can have an exclusive password
Parameter recipe: Up to 500 recipes can be stored and recalled easily on the PFC controller
Batch report: Up to 800 batch reports can be stored on the PFC controller, which can be saved to USB flash drive or printed directly
Communication control: RS485 interface, Modbus RTU protocol
External control input: Start the pump, emergency stop, disable channel
Output: 1 output for malfunction status
IP rating: IP31
Power supply: AC 100V-240V ，50/60Hz, 60W
Dimension（L*W*H）: 119mm×203mm×176mm（without pump head）
Weight of system: 3.5kg（without pump head）
Dimension of controller (L*W*H）: 187mm×123mm×39mm
Weight of controler: 0.6kg
Working condition: Temperature: 5 - 40°C ，RH: ≤85%, no condensation
Storage and transportation condition: Temperature：-40 - 70°C，RH: ≤85%, no condensation
Tubing: Silicone tubing and tubing kits
Filling volume: 1μL-99.99L
Filling accuracy: better than ±1%
Filling precision: CV<0.5%
Filling time: 0.1seconds-999.9hours
Filling cycle: 0-999999 (0 means unlimited)
Interval time: 0.1s-999.9s
Back suction parameter: 0-30
Working direction: Clockwise
Calibration: Manual input calibration, balance reading calibration or online ratio calibration, with volume or mass data
Display: 7 inch touch screen, Chinese or English can be set
Work mode: Single channel filling, multi-channel filling with the same parameters or individual parameters
Access management and password protection: Three levels of user accesses (administrator, developer, operator), each user can have an exclusive password
Parameter recipe: Up to 500 recipes can be stored and recalled easily on the PFC controller
Batch report: Up to 800 batch reports can be stored on the PFC controller, which can be saved to USB flash drive or printed directly
Communication control: RS485 interface, Modbus RTU protocol
External control input: Start the pump, emergency stop, disable channel
Output: 1 output for malfunction status
IP rating: IP31
Power supply: AC 100V-240V ，50/60Hz, 60W
Dimension（L*W*H）: 119mm×203mm×176mm（without pump head）
Weight of system: 3.5kg（without pump head）
Dimension of controller (L*W*H）: 187mm×123mm×39mm
Weight of controler: 0.6kg
Working condition: Temperature: 5 - 40°C ，RH: ≤85%, no condensation
Storage and transportation condition: Temperature：-40 - 70°C，RH: ≤85%, no condensation
Other parameters
