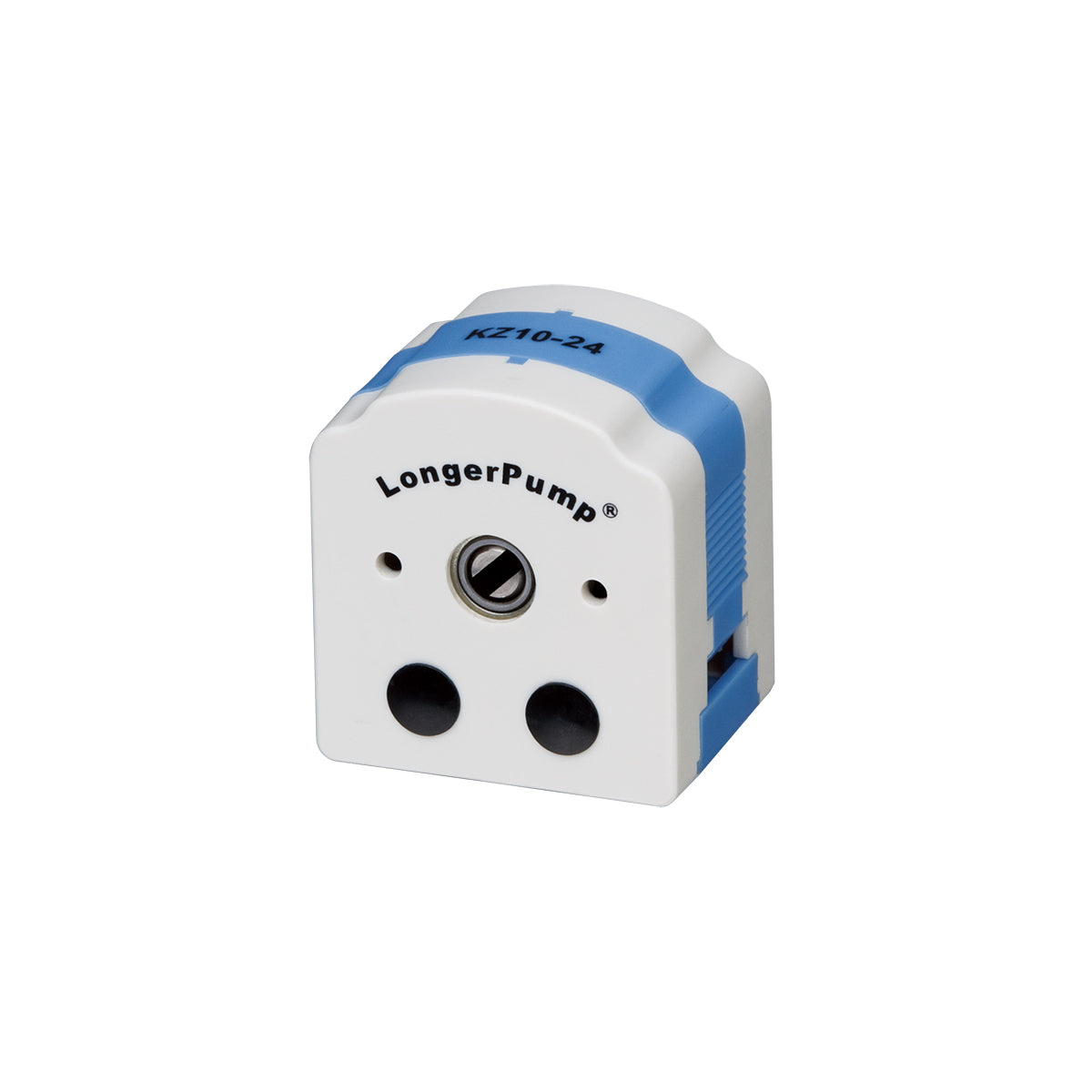

KZ10/15 Serial Peristaltic Pump Head
KZ10/15 Serial Peristaltic Pump Head
Couldn't load pickup availability
Product Introduction
KZ10-24 and KZ15-14 are OEM peristaltic pump heads. Mainly designed for medium flow and low flow fluid transfer. Up to four heads can be stacked for multi-channel applications. With flexible compression block, tubing can be easily loaded and replaced. KZ10-24 can accept tubing with ID≤3.17mm and wall thickness of 0.86mm. KZ15-14 can accept tubing with wall thickness of 1.6mm. These pump heads are very suitable for OEM application.
Flow rates：-≤206ml/min
Max. Number of Channels：2
Main Functions and FeaturesInstallation Drawing
Technical Specifications
Tubing Fitting Assembly
Tubing Clamper
Other parameters
| Model | Channel | Roller Number | Speed (rpm) |
Tubing | Max Flowrate (mL/min) |
Weight (kg) |
| KZ10-24-A | 2 | 4 | 450 | Inner diameter =3.17mm wall thickness:0.86mm |
119 | 0.1 |
| KZ10-24-B | ||||||
| KZ10-24-C | ||||||
| KZ10-24-D | ||||||
| KZ15-14-A | 1 | 13# 14# 19# 16# | 206 | |||
| KZ15-14-B | ||||||
| KZ15-14-C | ||||||
| KZ15-14-D |
