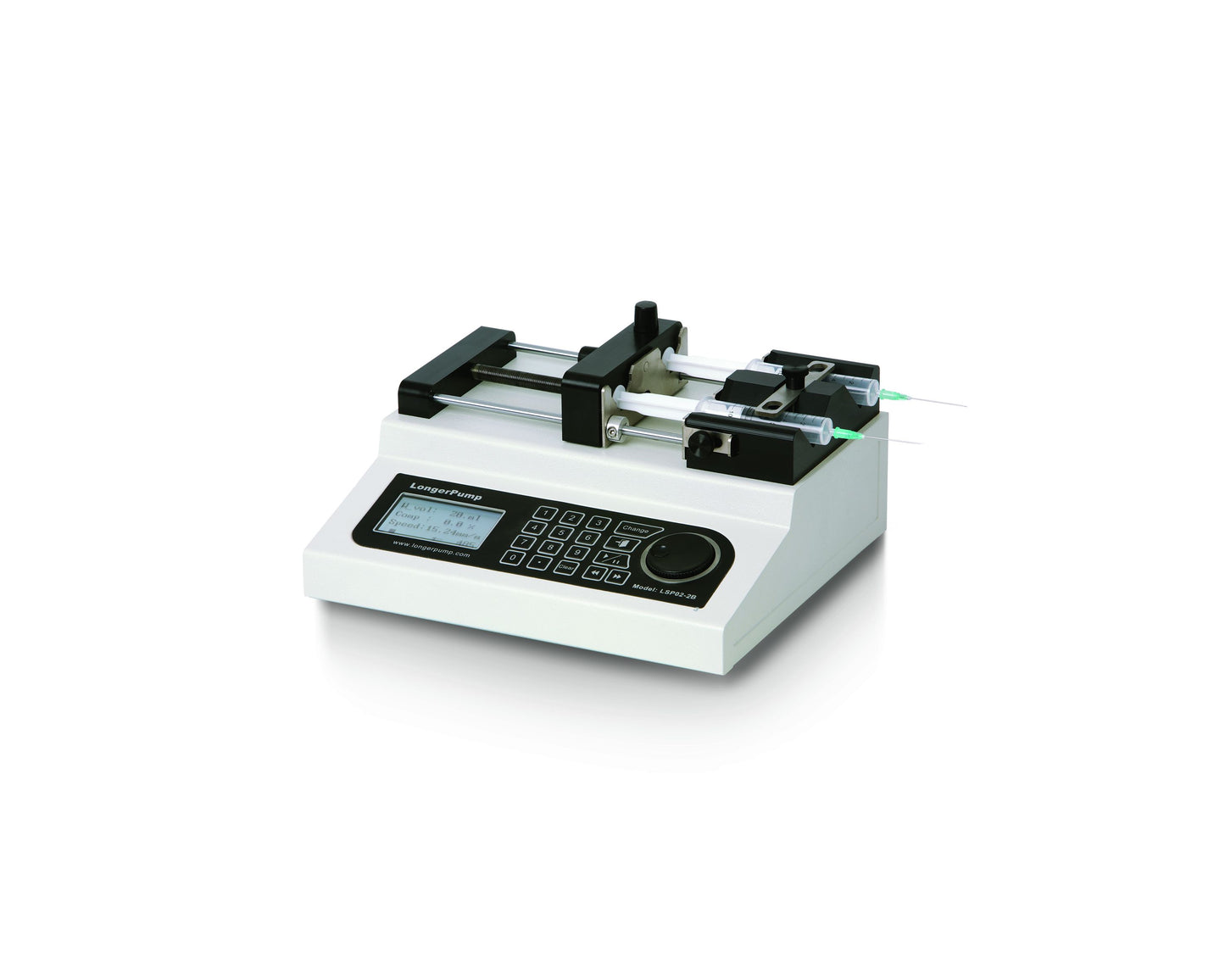

LSP02-2B Dual Channels Syringe Pump

Product Instruction

LSP02-2B Mainly used in Lab applications. Excellent EMC performance, ESD≥Level IV (IEC 61000-4-2). The acceptable syringe specification is from 10 µL to 140 mL. Suitable for high accuracy and small flow rate liquid transferring.
Flow rates：0.05μl/hr-150.56ml/min
Max. Number of Channels：2

Main Functions and Features

- Syringe Selection: The syringe can be selected in the manufacturer table which includes manufacturer, material and size or input the inner diameter of the syringe barrel directly
- Easy to operate: Combining big screen LCD display with rotary coded switch and membrane keypad makes the operation simple and prompt.
- Working Mode: Infusion, withdrawal, infusion/withdrawal, withdrawal/infusion, continuous
- Memory Function: 1. The parameters are saved in EEPROM. The parameters don't need to be reset when power returns after an interruption. 2. In flow rate mode, the pump remains running or stop according to the setting parameters when power returns
- Protection Function: The pump will stall and give an alarm when the drive structure of the pump is blocked
- Communication Function: Realize computer control through RS485 communication interface
- External Control Function: Input/output control
- Calibration Function: Acquire accurate volume through calibration
- Syringe Protection: Adjust syringe rest to prevent syringe from damaging

Technical Specifications

Number of Channels：2
Display Setting：Display volume, flow rate, linear speed
Syringe Size：10µL – 140 mL
Power-off Memory：Storing the running parameters automatically
Dimensions (mm)：280×250×140
Weights (Kg)：4.3
Working Mode：Infusion / Withdraw
Linear Force：> 18Kg
Advance per Micro-step：1/16 Step (0.156µm)
Max. Step Rate：13867 (1/16 step) /sec
Min. Step Rate：16 (1/16) / 30 sec
Max. Linear Rate：130 mm/min
Min. Linear Rate：5µm/min
Accuracy：≤ 0.5% error in the condition of ≥ 30% of max. infusion distance
Setting Mode：Rotary coded switch and membrane keypad
Display：128x64 graphic LCD
Power Supply：AC196V -240V/40W
Operation Condition：Temperature: 5℃ - 40℃, Relative humidity: <80%
