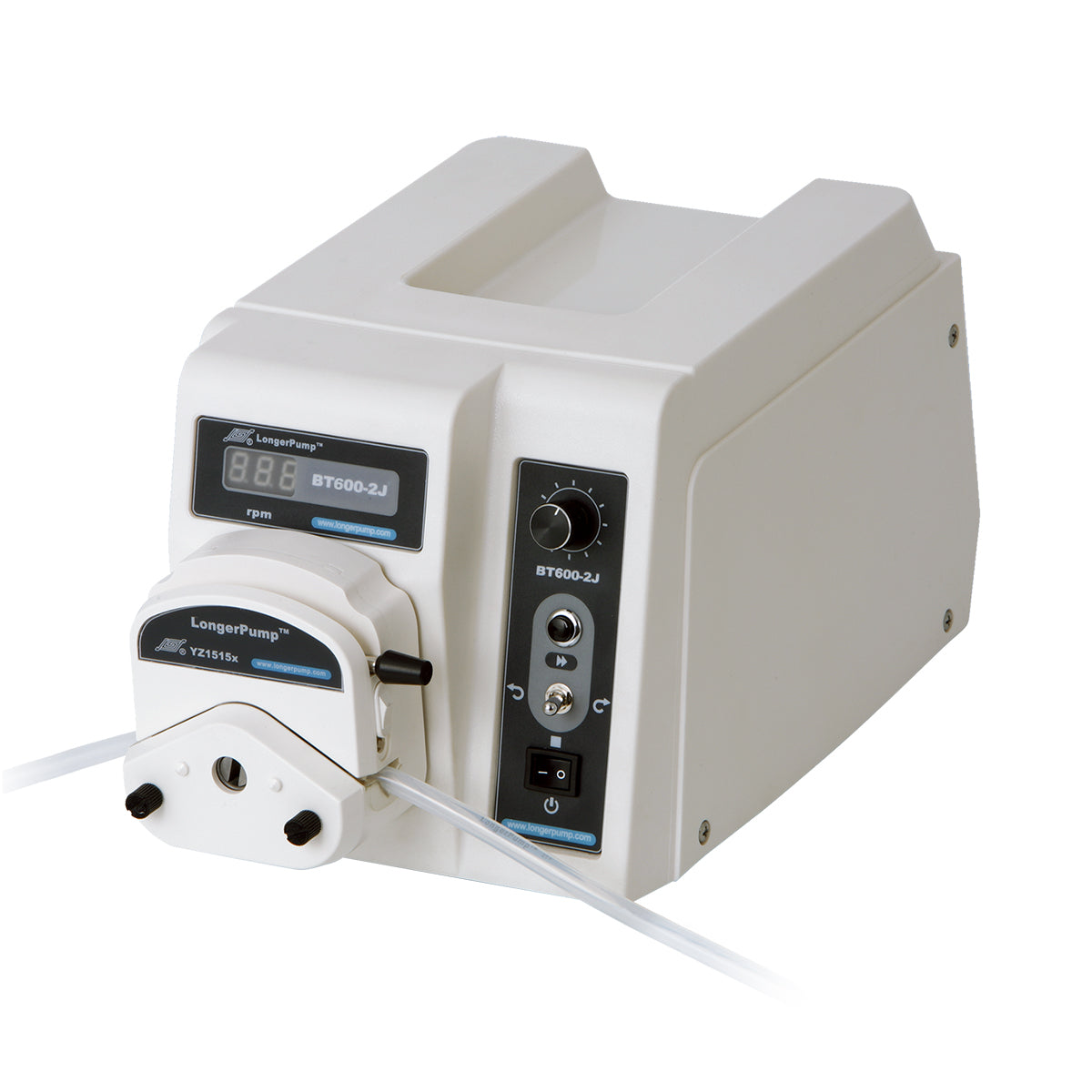

BT600-2J Medium-High Flow Rate Peristaltic Pump
BT600-2J Medium-High Flow Rate Peristaltic Pump
Couldn't load pickup availability
Product Instruction
Medium-High Flow Rate Peristaltic Pump BT600-2J could be loaded with YZ1515X, YZ2515X, YZII15, YZII25 and DG15-24. The pump provides flow rates from 0.07mL/min to 3000 mL/min. The speed could be controlled through control panel, external control interface or RS485 interface. The running parameters are saved automatically. And the pump could be operated easily.
Flow rates：0.07ml/min-3000ml/min
Max. Number of Channels：2
Main Functions and Features
- Prime button for fast filling and emptying
- The pump could be controlled manually through control panel or automatically through external control interface.
- Memory function: Storing the running parameters automatically
- Equipped with Longer Dispensing Controller for filling function
- Communication function: the pump could be controlled by computer through RS485 interface.
- Indoor use only
Technical Specifications
- Speed Resolution: 1 rpm
- Speed Control: Rotary encoded switch
- Display: 3-digit LED displays current speed
- External control: Start/stop and CW / CCW control, 0 to 5V, 0 to 10V, 4 to 20mA and 0 to 10KHz speed control
- Power Supply: AC 90 - 260V 50/60 Hz
- Power Consumption: <100W
- Operating Condition: Temperature 0 to 40℃ Relative humidity < 80%
- Dimensions (L×W×H): 280×200×180 (mm)
- Drive Weight: 3.8 kg
- IP Rating: IP 31
| Pump Head | Tubing | Flow Rates(mL/min) | Weight(kg) |
| YZ1515x | 13#, 14#, 19#, 16#, 25#, 17#, 18# | 2200 | 4.2 |
| YZⅡ15 | 13#, 14#, 19#, 16#, 25#, 17#, 18# | 2200 | 4.2 |
| YZ2515x | 15#, 24# | 1600 | 4.2 |
| YZⅡ25 | 15#, 24#, 35#, 36# | 3000 | 4.2 |
| DG15-24 | 16#, 25#, 17# | Single channel 1800 | 4.6 |
Suitable Pump Head:
Suitable Tubing:
Flow Rates Curves:
