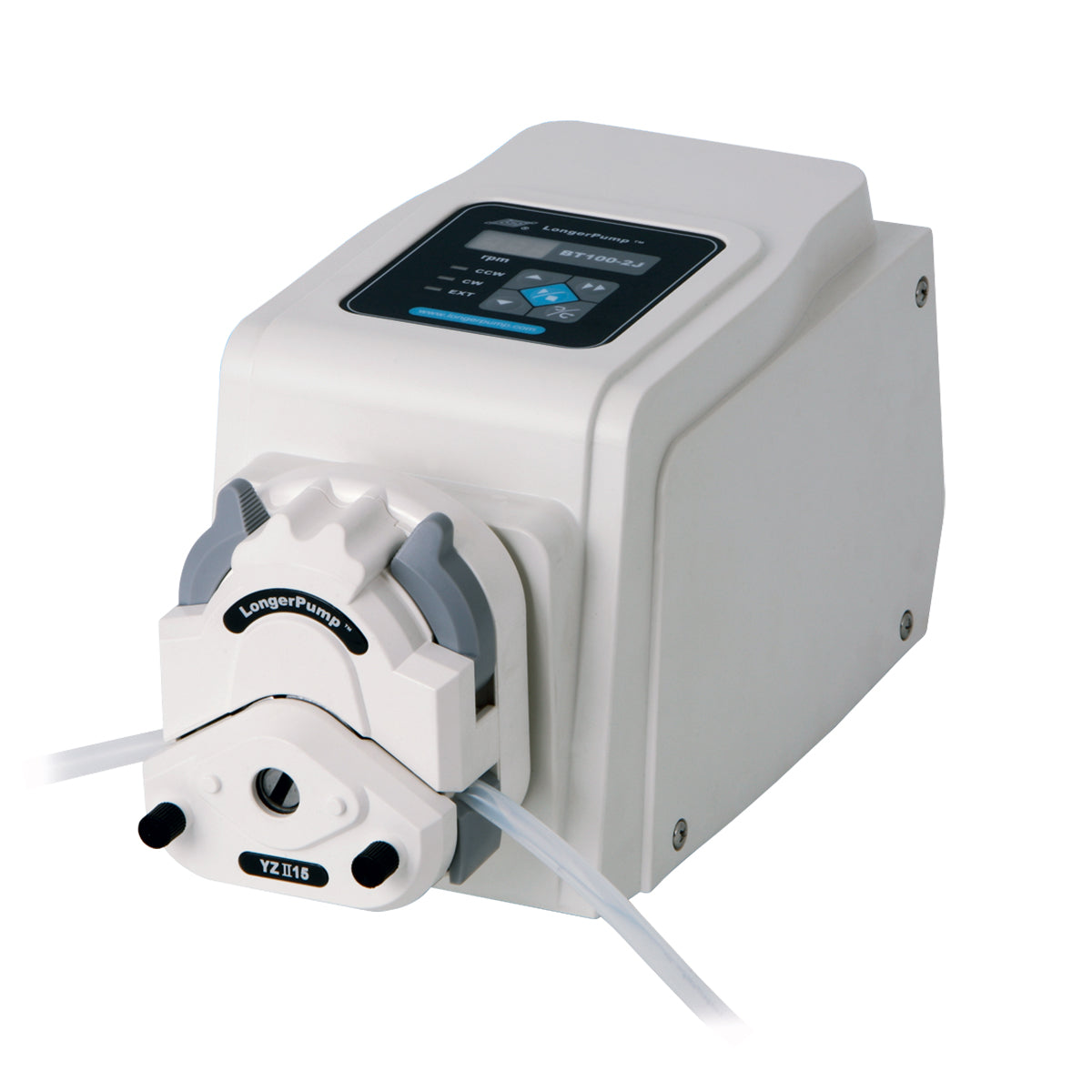

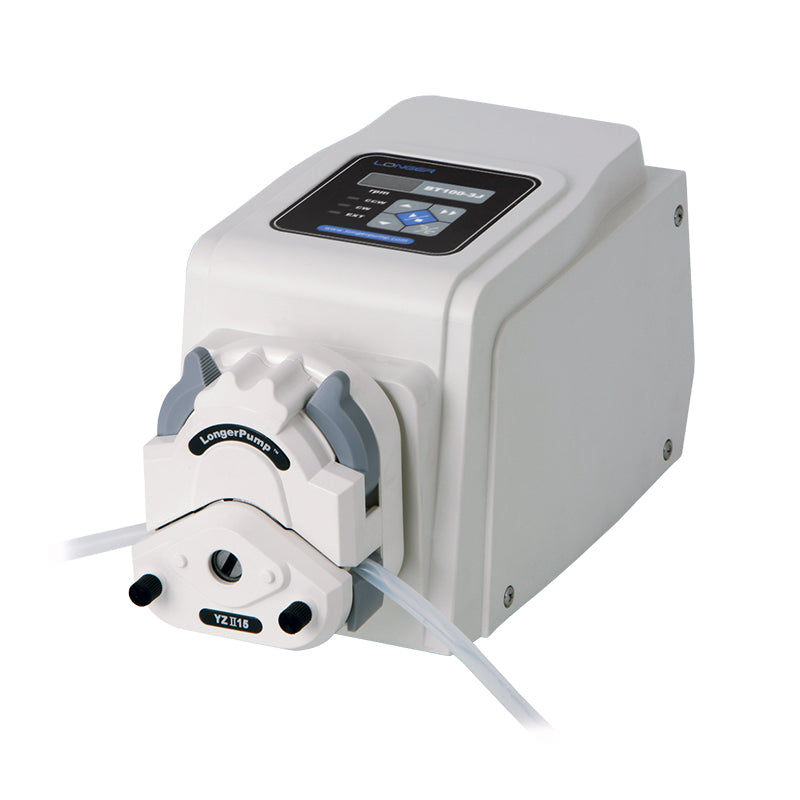

BT100-3J Precise peristaltic pump
BT100-3J Precise peristaltic pump
Couldn't load pickup availability
Product Instruction
Precise peristaltic pump BT100-3J could be loaded with YZ1515X, YZII15, YZ2515X, YZII25, DG-1/DG-2 and DG15-24/DG15-28. The pump provides flow rates from 0.0002mL/min to 380mL/min. The speed could be controlled through control panel, external control interface or RS485 interface. The running parameters are saved automatically. And the pump could be operated easily.
Flow rates：0.0002ml/min-380ml/min
Max. Number of Channels：2
Main Functions and Features
- Applicable pump heads: YZ1515X, YZ2515X, YZII15,YZII25, DG-1, DG-2
- Prime key for fast filling and emptying
- Adjust speed manually or automatically through analog interface.
- Memory function, storing the running parameters automatically
- Membrane keypad, easy to operate
- Good performance and low price
- Indoor use only.

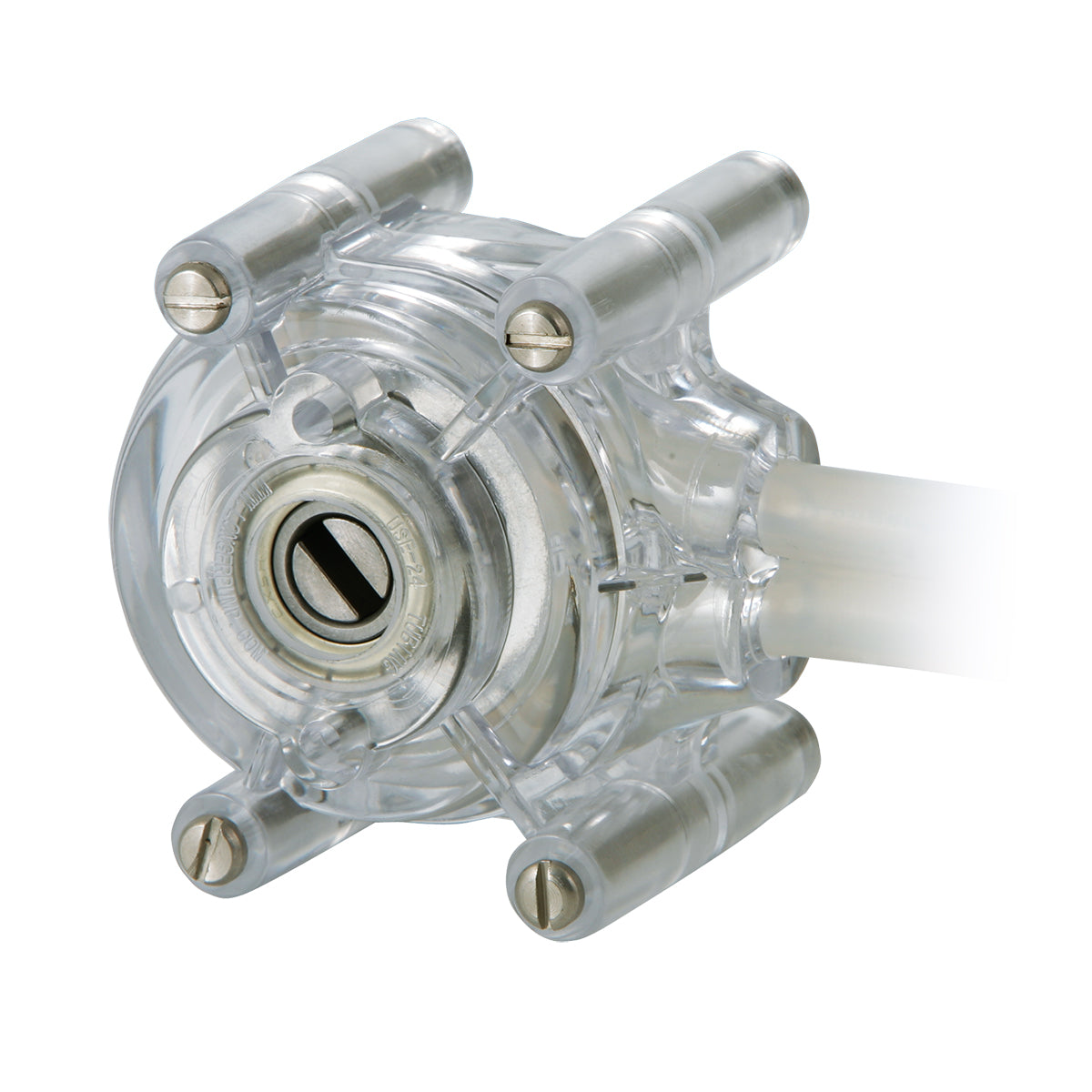

Suitable Pump Head:
Suitable Tubing:
Flow Rate Curves:
Technical Specifications
- Speed precision: 0.1 rpm
- Speed control: Membrane keypad
- Display: 3-digit LED displays current rpm
- Communication interface: RS485
- External control: Start/stop, cw/ccw control and speed control 0-5 V, 0-10 V, 4-20 mA and 0-10KHz
- Power supply: AC 90V-260 V 50/60 Hz
- Power consumption: ≤30 W
- Operating condition: Temperature 0 to 40 ℃
- Relative humidity < 80%
- Dimensions (L×W×H): 232×142×149 (mm)
- Drive weight: 2.3 kg
- IP rating: IP 31
| Pump Head | Tubing | Flow Rates(mL/min) | Weight(kg) |
| YZ1515x | 13#, 14#, 19#, 16#, 25#, 17#, 18# | 380 | 2.7 |
| YZⅡ15 | 13#, 14#, 19#, 16#, 25#, 17#, 18# | 380 | 2.7 |
| YZ2515x | 15#, 24# | 270 | 2.7 |
| YZⅡ25 | 15#, 24# | 270 | 2.7 |
| DG-1(6 rollers) | Wall Thickness: 0.8-1, Inner diameter less than3.17 |
48 | 2.5-2.6 |
| DG-1(10 rollers) | Wall Thickness: 0.8-1, Inner diameter less than3.17 |
32 | 2.5-2.6 |
| DG-2(6 rollers) | Wall Thickness: 0.8-1, Inner diameter less than3.17 |
Single channel 48 | 2.5-2.6 |
| DG-2(10 rollers) | Wall Thickness: 0.8-1, Inner diameter less than3.17 |
Single channel 32 | 2.5-2.6 |
| DG15-24 | 16#, 25#, 17# | Single channel 300 | 3.1 |
| DG15-28 | 13#, 14#, Wall Thickness:0.8-1, Inner diameter less than3.17 |
Single channel 75 | 3 |
