KZ35 Quick-load Industrial Pump Head
KZ35 Quick-load Industrial Pump Head
Couldn't load pickup availability
Product Instruction

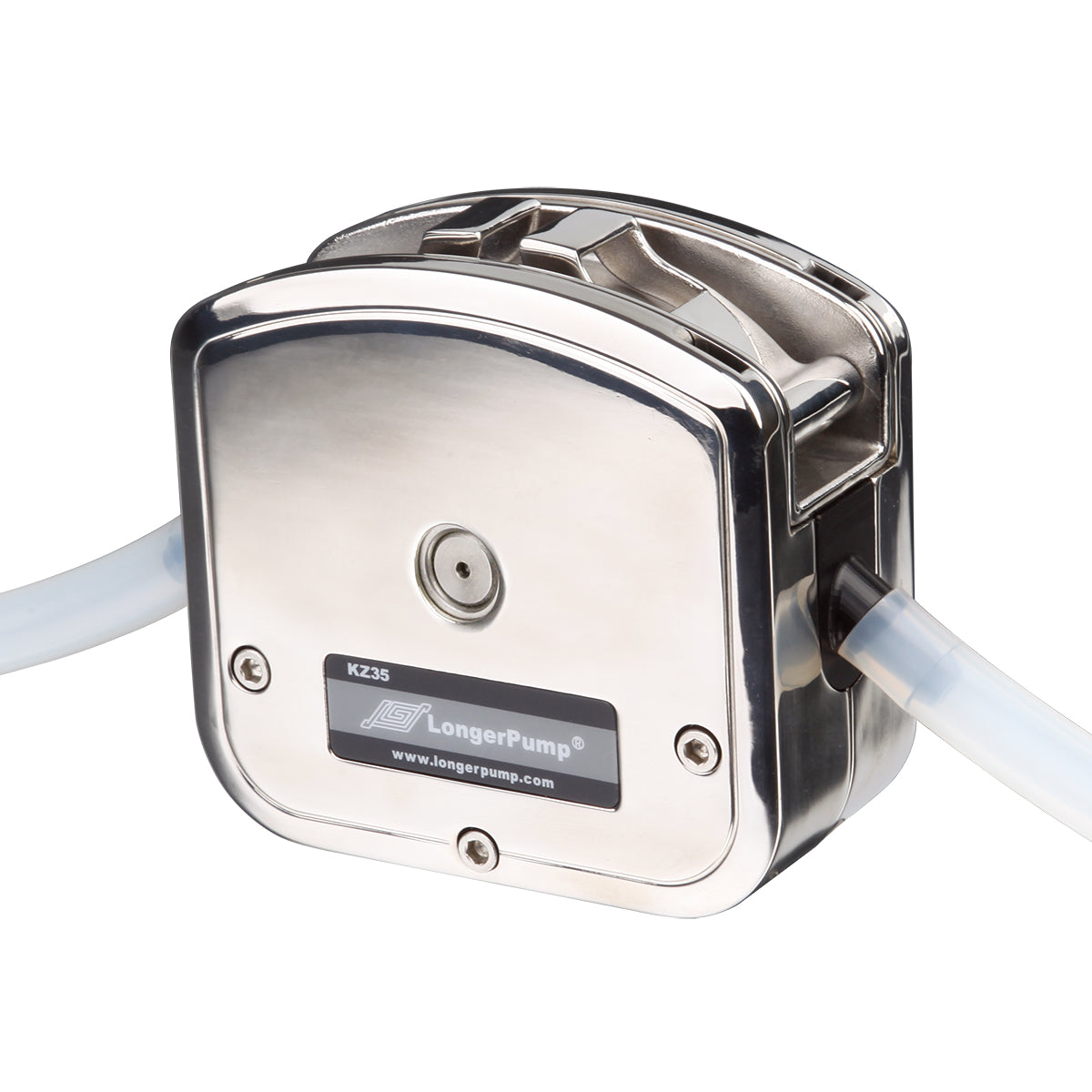

KZ35 pump head is specially designed and produced for pharmaceutical and food industry according to GMP criteria. All the key parts are adopted 304 stainless steel and tubing holders adopt PVDF material. The surface of KZ35 is polished to make it easier to be cleaned. Sophisticated structure ensure its stable performace and easy to change tubing.
Flow rates：-≤11000ml/min
Max. Number of Channels：1
Main Functions and Features
Installation Drawing:
Technical Specifications
Other parameters
| Model | Roller Number | Speed (rpm) |
Tubing | Max Flowrate (mL/min) |
Weight (kg) |
| KZ35-13-A (Long shaft) | 3 | 600 | 73# 82# | 11000 | 3.7 |
| KZ35-13-B (Short shaft) |
