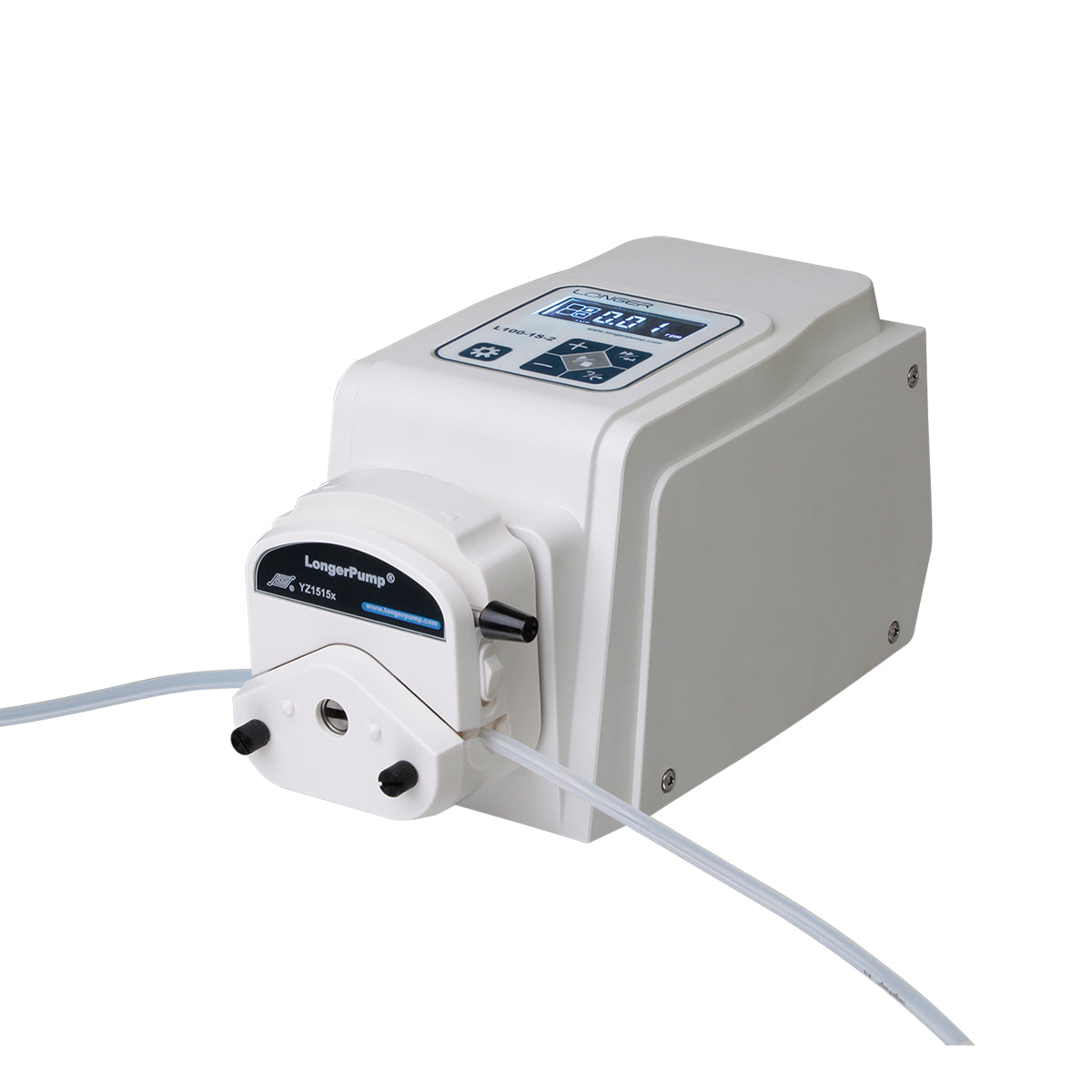

Product Instruction
With precise speed control in 0.01rpm resolution (10000:1 turndown ratio), and flow rate calibration function, the pump has more accurate and wider range of flow rate.
Flow rates：0.00015ml/min-500ml/min
Max. Number of Channels：8
Main Functions and Features
Speed：0.01rpm-100rpm，CW/CCW
Speed resolution："0.01rpm resolution within the speed of 0.01rpm-10rpm
0.1rpm resolution within the speed of 10rpm-100rpm"
Display：LCD
Control mode：Keypad control, external signal control and communication control
Work mode：Speed control mode and flow rate mode
Flow rate mode：Flow rate is displayed and the pump runs continuously at the set flow rate
Flow rate calibration：Improve the flow rate accuracy
Flow rate setting range：0.01uL/min-999L/min, unit could be set as uL/min, mL/min or L/min
External control：Start/stop control (switch signal), direction control (switch signal), speed control (0-5V,0-10V,4-20mA,0-10kHz are optional with uniform interface, from 0-10rpm in 0.01rpm resolution, from 10-100rpm in 0.1rpm resolution)
Communication control：RS485 interface, Longer protocol or Modbus protocol, the communication parameters (address, baud rate, parity, stop bit) can be set through keypad.
Timing function：Set the running time (13 options), the pump could run/stop automatically
Parameter memory：Operating parameters will be saved automatically.
Pump status when powered up：The pump status when powered up could be set as stop or as the status before power loss.
Prime：Fast filling or emptying at full speed
Keypad lock function：Keypad can be locked to prevent the misoperation.
Dimension(LxWxH)：232*142*149(mm)
Power supply：AC100V～240V/25W，50/60Hz
Operating temperature：0℃～40℃
Relative humidity：<80%
IP rating：IP31
Weight：2.38kg
Speed resolution："0.01rpm resolution within the speed of 0.01rpm-10rpm
0.1rpm resolution within the speed of 10rpm-100rpm"
Display：LCD
Control mode：Keypad control, external signal control and communication control
Work mode：Speed control mode and flow rate mode
Flow rate mode：Flow rate is displayed and the pump runs continuously at the set flow rate
Flow rate calibration：Improve the flow rate accuracy
Flow rate setting range：0.01uL/min-999L/min, unit could be set as uL/min, mL/min or L/min
External control：Start/stop control (switch signal), direction control (switch signal), speed control (0-5V,0-10V,4-20mA,0-10kHz are optional with uniform interface, from 0-10rpm in 0.01rpm resolution, from 10-100rpm in 0.1rpm resolution)
Communication control：RS485 interface, Longer protocol or Modbus protocol, the communication parameters (address, baud rate, parity, stop bit) can be set through keypad.
Timing function：Set the running time (13 options), the pump could run/stop automatically
Parameter memory：Operating parameters will be saved automatically.
Pump status when powered up：The pump status when powered up could be set as stop or as the status before power loss.
Prime：Fast filling or emptying at full speed
Keypad lock function：Keypad can be locked to prevent the misoperation.
Dimension(LxWxH)：232*142*149(mm)
Power supply：AC100V～240V/25W，50/60Hz
Operating temperature：0℃～40℃
Relative humidity：<80%
IP rating：IP31
Weight：2.38kg
Technical Specifications
| Pump Head | Tubing | Flow Rates(mL/min) | Weight(kg) |
| YZ1515x | 13#,14#,19#,16#,25#,17#,18# | 380 | 2.78 |
| YZII15 | 13#,14#,19#,16#,25#,17#,18# | 380 | 2.78 |
| YZ2515x | 15#,24# | 270 | 2.78 |
| YZⅡ25 | 15#,24#,35#,36# | 500 | 2.78 |
| FG15-13 | 13#,14#,19#,16#,25#,17#,18# | 430 | 2.66 |
| FG25-13 | 15#,24# | 320 | 2.66 |
| DMD15-13-B | 2x13#,2x14#,2x19#,2x16#,2x25# | 375 | 2.81 |
| DMD15-13-D | 2x13#,2x14#,2x19#,2x16#,2x25# | 375 | 2.81 |
| DG-1(6 rollers) | Wall thickness:0.8-1, Inner diameter less than3.17 |
48 | 2.58-3.01 |
| DG-1(10 rollers) | Wall thickness:0.8-1, Inner diameter less than3.17 |
32 | 2.58-3.01 |
| DG-2(6 rollers) | Wall thickness:0.8-1, Inner diameter less than3.17 |
Single channel 48 | 2.58-3.01 |
| DG-2(10 rollers) | Wall thickness:0.8-1, Inner diameter less than3.17 |
Single channel 32 | 2.58-3.01 |
| DG-4(6 rollers) | Wall thickness:0.8-1, Inner diameter less than3.17 |
Single channel 48 | 2.58-3.01 |
| DG-4(10 rollers) | Wall thickness:0.8-1, Inner diameter less than3.17 |
Single channel 32 | 2.58-3.01 |
| DG-6(6 rollers) | Wall thickness:0.8-1, Inner diameter less than3.17 |
Single channel 48 | 2.58-3.01 |
| DG-8(6 rollers) | Wall thickness:0.8-1, Inner diameter less than3.17 |
Single channel 48 | 2.58-3.01 |
| BZ15-13-A | 14# | 22 | 2.69 |
| BZ15-13-B | 16# | 80 | 2.69 |
| BZ15-13-C | 25# | 150 | 2.69 |
| BZ15-13-D | 17# | 270 | 2.69 |
| BZ25-13-B | 24# | 250 | 2.69 |
| DG15-24 | 16#,25#,17# | Single channel 300 | 3.2 |
| DG15-28 | 13#,14#, Wall thickness: 0.8-1, Inner Diameter less than 3.17 |
Single channel 75 | 3.05 |
