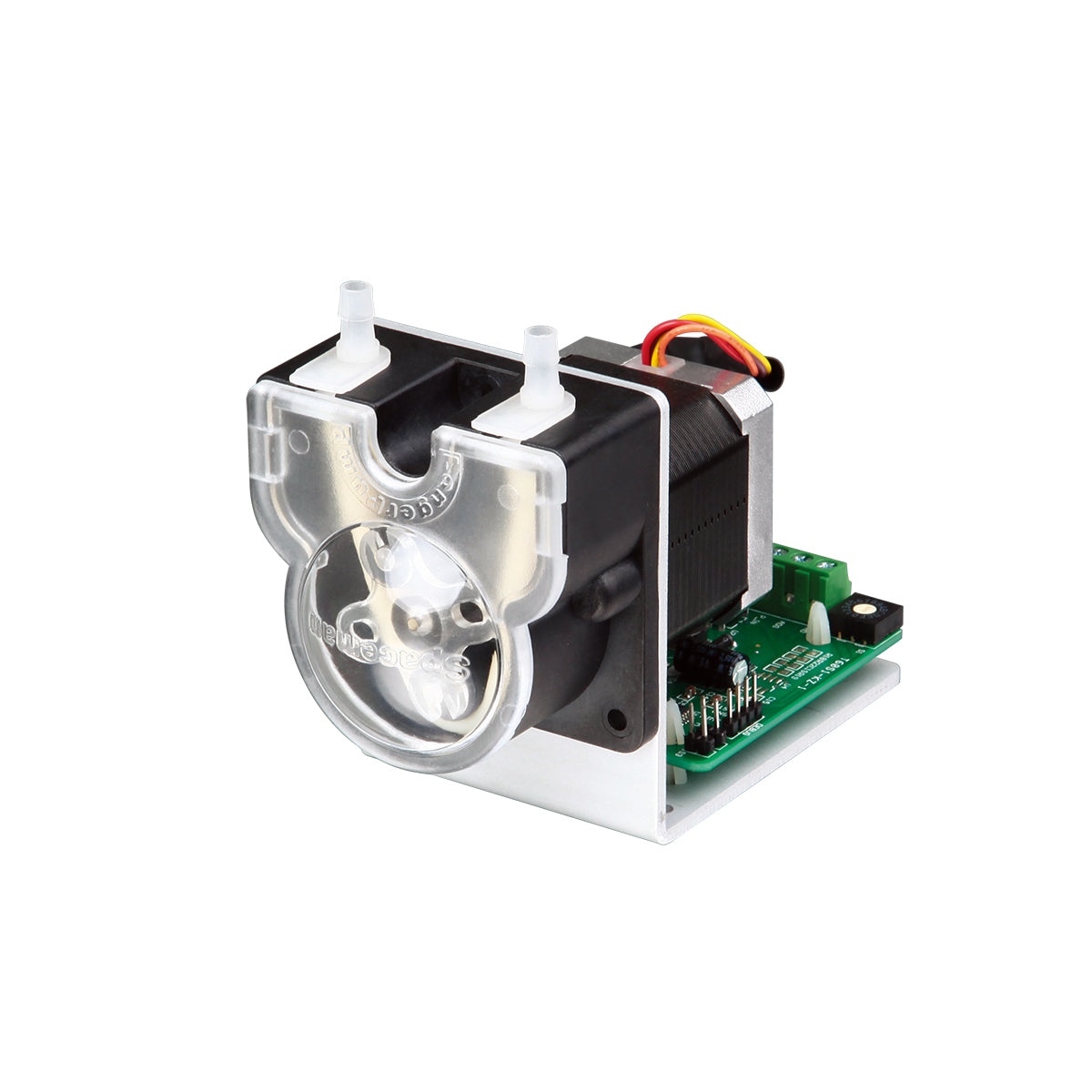

T100&JY15-12 Low Flow Rate OEM Peristaltic Pump

Product Introduction

Use JY15-12 pump head
Mainly designed for OEM applications
Multi-control modes are available
Soleplate installation is standard, panel installation is optional
Flow rates：-≤170ml/min
Max. Number of Channels：Max. Flowrate Per Channel
Main Functions and Features
Speed：≤100rpm
Speed resolution：0.1rpm
*Direction control：Direction is controlled by external switch signal. CW when switch is open,
CCW when switch is closed.
*Start/stop control：Start/stop is controlled by external switch signal. Pump runs when switch is open,
stops when switch is closed.
*BCD dial switch speed
control：The speed is divided into 15 grades. BCD position 1-F corresponding to (rpm)5,10,15,20,25,30,35,40,45,50,60,70,80,90,100 (rpm)
*External speed control
(optional)：4-20mA corresponding to 0.1-100rpm, 0-5V corresponding to 0-100rpm、0-10V corresponding to 0-100rpm, 0-10kHz corresponding to 0-100rpm
**Communication pump ID：Pump ID range is 1-30
**Bit rate：1200bps or 9600bps
Dimension(L x W x H)：118 x 60 x 96 (mm)
Relative humidity：＜80%
Operating temperature：0℃～40℃
Power supply：DC11.4V-25.2V
Power consumption：≤12W
Weight：0.54kg
Note：
Items with * are only available for products with dial switch and external speed control signal.
Items with ** are only available for product with RS485.
