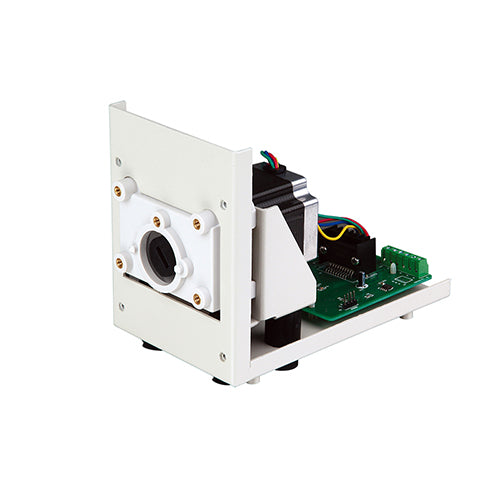

T100 Series (CE certified) Peristaltic Pump
T100 Series (CE certified) Peristaltic Pump
Couldn't load pickup availability
Product Introduction
Max. Flow Rate：430mL/min
Good EMC performance, stable and reliable running
Multi-control modes.
Standard pump head mounting bracket can be fitted with several different pump head.
Low vibration, low noise
Soleplate or panel installation
Flow rates：-≤430ml/min
Max. Number of Channels：2
Main Functions and Features
|
Product Model |
Control Mode |
|
T100-SV-10 |
Dial switch and external signal (0-10V) |
|
T100-SA |
Dial switch and external signal (4-20mA) |
|
T100-SF |
Dial switch and external signal (0-10kHz) |
|
T100-SC |
RS485 communication |
|
T100-SV-05 |
Dial switch and external signal (0-5V) |
| Pump Head | Tubing | Max. Flow Rate Reference(mL/min) |
| YZ1515X、YZⅡ15 | 13# 14# 19# 16# 25# 17# 18# | 380mL/min |
| YZ2515X、YZⅡ25 | 15# 24# | 270mL/min |
| FG15-13 | 13# 14# 19# 16# 25# 17# 18# | 430mL/min |
| FG25-13 | 15# 24# | 320mL/min |
| DMD15-13-B/DMD15-13-D | 2X13# 2X14# 2X19# 2X16# 2X25# | 375mL/min |
| BZ15-13-A | 14# | 22mL/min |
| BZ15-13-B | 16# | 80mL/min |
| BZ15-13-C | 25# | 150mL/min |
| BZ15-13-D | 17# | 270mL/min |
| BZ25-13-B | 24# | 250mL/min |
| DG15-24 | 16# 25# 17# | 300mL/min(Single Channel) |
| DG15-28 | 13#,14#,ID≤3.17(mm),Wall thickness:0.8-1(mm) | 75(Single Channel, speed≤100rpm) |
| DG-1(6)、DG-2(6) | ID≤3.17(mm),Wall thickness:0.8-1(mm) | 48(Single Channel, speed≤100rpm) |
| DG-1(10)、DG-2(10) | ID≤3.17(mm),Wall thickness:0.8-1(mm) | 32(Single Channel, speed≤100rpm) |
Technical Specifications
Speed: ≤100rpm
Speed resolution: 0.1rpm
*Direction control: Direction is controlled by external switch signal. CW when switch is open, CCW when switch is closed.
*Start/stop control: Start/stop is controlled by external switch signal. Pump runs when switch is open, stops when switch is closed.
*BCD dial switch speed control: The speed is divided into 15 grades. BCD position 1-F corresponding to 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 80, 90, 100(rpm)
*External speed control (optional): 4-20mA, 0-5V, 0-10V, 0-10kHz
**Communication control: RS485 interface,compatible both with Longer OEM protocol or Modbus protocol
**Communication Pump ID: Pump ID range is 1-30
**Bit rate: 1200bps or 9600bps
**Power-off memory: Return to previous status when powered on
Dimension(Lx Wx H): 180 x 102 x 136 (mm)
Relative humidity: ＜80%
Operating temperature: 0℃～40℃
Power supply: DC24V/50W
Weight: 1.43kg
Note：
Items with * are only available for products with dial switch and external speed control signal.
Items with ** are only available for product with RS485.
