Product Introduction

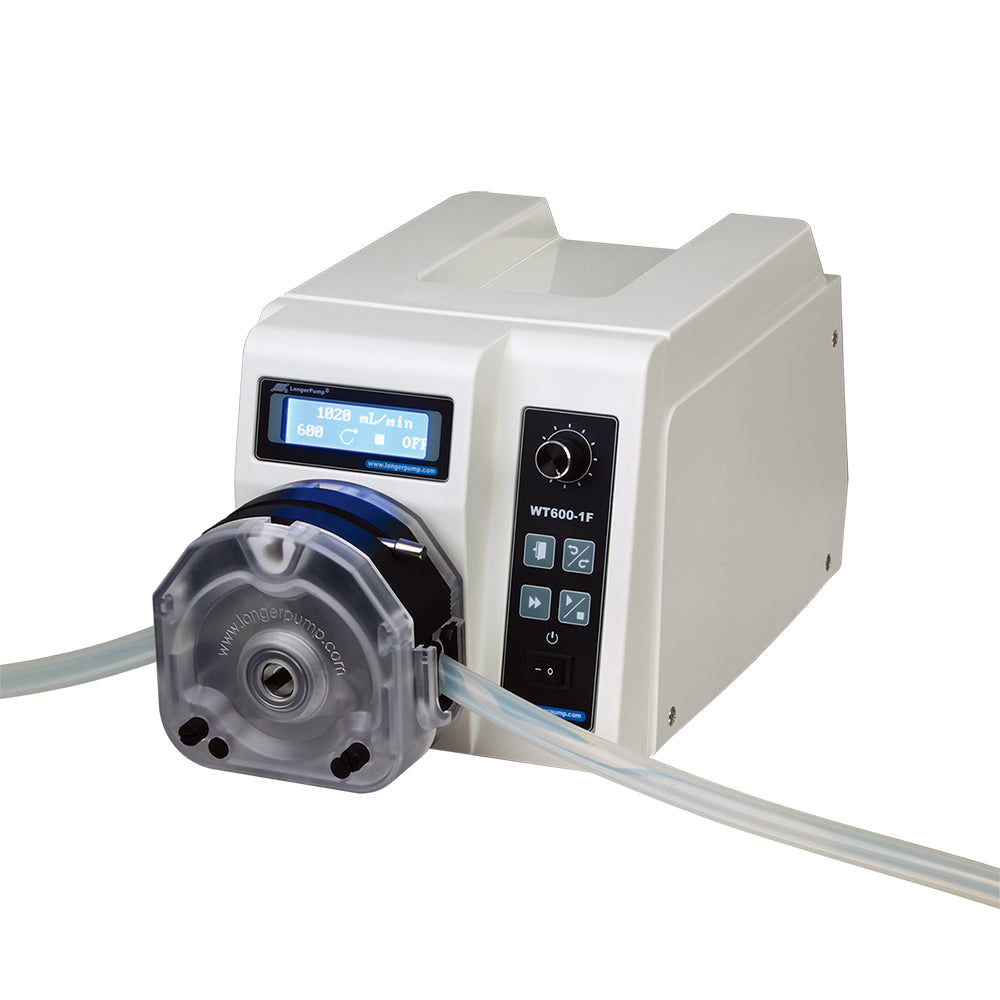

Dispensing peristaltic pump WT600-1F has LCD, which could display the parameters and running state. The pump could run continuously at desired flow rate and speed, and also could complete the dispensing function. The flow rate calibration and dispensing calibration ensure the high accuracy and precision. With DC brushless motor, the pump could drive 3 single-channel pump heads and offers flow rate from 0.7 mL/min to 6000mL/min per channel. And the dispensing volume is from 0.1mL to 99.9L.
Flow rates：0.7ml/min-6000ml/min
Max. Number of Channels：3
Main Functions and Features
- Power-off memory: Return to previous state when power on
- Operating mode: Membrane keypad and rotary encoded switch
- Speed control: The speed can be adjusted manually or automatically through external control
- Prime key: For fast filling and emptying at full speed
- Calibration function: The flow rates and the dispensing volume can be calibrated to increase the accuracy
Technical Specifications
- Dispensing volume: 0.1 mL to 99.9 L
- Speed: 10 to 600 rpm, CW/CCW
- Speed resolution: 1rpm
- Control mode: Control panel, external signal control and communication control are available
- Display: LCD for running state
- Dispensing volume: 0.1 ml to 99.9L
- Copy number: 0 to 9999, "0" means unlimited cycle
- Pause time : 0.1 s to 99.9 minutes, resolution is 0.1s.
- Back suction circle: 0 to 9.9 circle, resolution is 0.1 circle
- External control: star t/stop control, direction control, flow rates control (0 - 5V ,0 - 10V , 4 - 20 mA , 0 - 10KHz optional )
- Speed output: 166.7Hz - 10kHz corresponding to 10-600 rpm
- Start/stop output: OC gate signal
- Direction output: OC gate signal
- Communication interface: RS485
- Operating condition: Temperature 0 to 40°C, relative humidity < 80%
- Dimensions (L × W × H): 285 × 207 × 180 (mm)
- Drive weight: 5.2 kg
- IP rating: IP 31
Other parameters
| Pump Head | Tubing | Flow Rates(mL/min) | Weight(kg) |
| YZ1515X | 13#, 14#, 19#, 16#, 25#, 17#, 18# | 2200 | 5.6-6.4 |
| YZⅡ15 | 13#, 14#, 19#, 16#, 25#, 17#, 18# | 2200 | 5.6-6.4 |
| YZ2515X | 15#, 24# | 1600 | 5.6-6.4 |
| YZⅡ25 | 15#, 24#, 35#, 36# | 3000 | 5.6-6.4 |
| KZ25 | 15#, 24#, 35#, 36# | 6000 | 6 |
| DG15-24 | 16#, 25#, 17# | Single channel 1800 | 6 |
| DMD15-13-B | 2×13#, 2×14#, 2×19#, 2×16#, 2×25# | 2070 | 5.6-6 |
| DMD15-13-D | 2×13#, 2×14#, 2×19#, 2×16#, 2×25# | 2070 | 5.6-6 |
| 2× YZ1515X | 13#, 14#, 19#, 16#, 25#, 17#, 18# | Single channel 2200 | 5.6-6.4 |
| 2× YZⅡ15 | 13#, 14#, 19#, 16#, 25#, 17#, 18# | Single channel 2200 | 5.6-6.4 |
| 2×YZ2515X | 15#, 24# | Single channel 1600 | 5.6-6.4 |
| 2×YZⅡ25 | 15#, 24#, 35#, 36# | Single channel 3000 | 5.6-6.4 |
| 3× YZ1515X | 13#, 14#, 19#, 16#, 25#, 17#, 18# | Single channel 2200 | 5.6-6.4 |
| 3× YZⅡ15 | 13#, 14#, 19#, 16#, 25#, 17#, 18# | Single channel 2200 | 5.6-6.4 |
| 3×YZ2515X | 15#, 24# | Single channel 1600 | 5.6-6.4 |
| 2×DMD15-13-B | 2×13#, 2×14#, 2×19#, 2×16#, 2×25# | Single channel 2070 | 5.6-6 |
| 2×DMD15-13-D | 2×13#, 2×14#, 2×19#, 2×16#, 2×25# | Single channel 2070 | 5.6-6 |
