Product Instruction

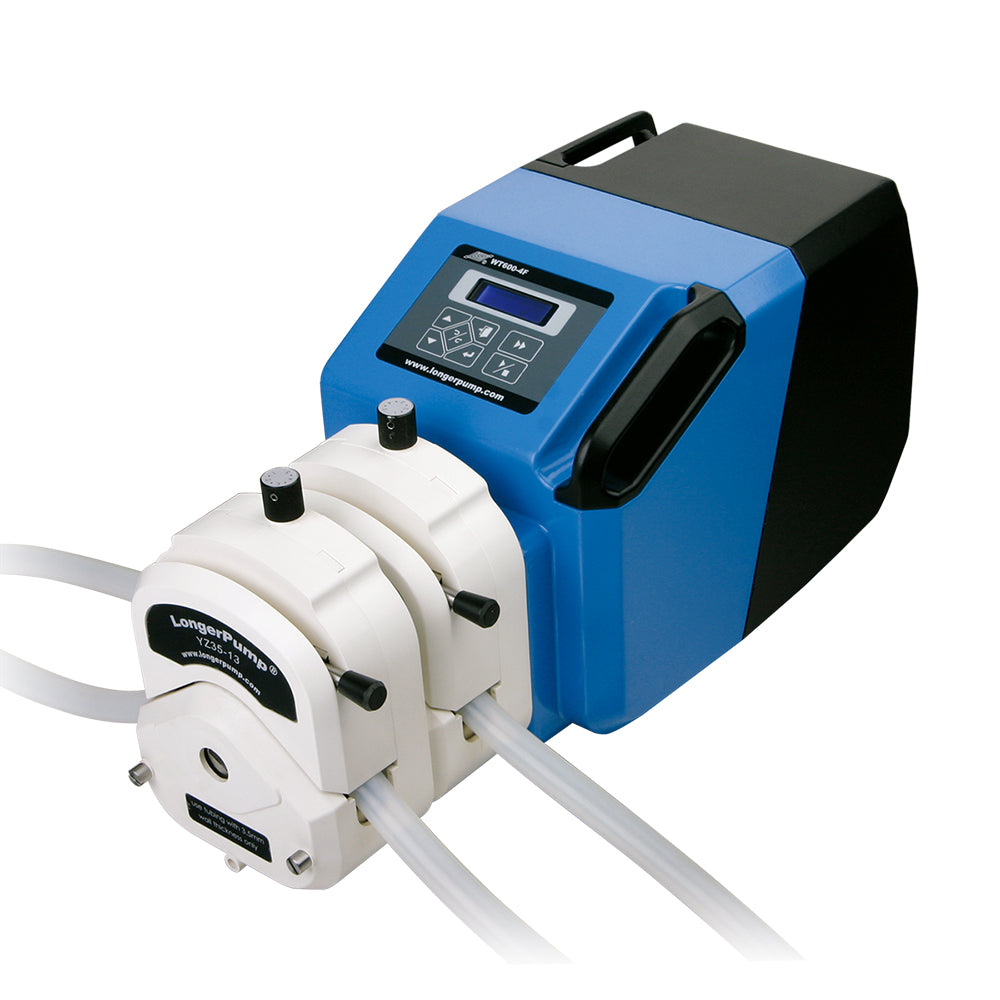

Industrial peristaltic pump WT600-4F is a kind of dispensing pump with high IP rating, which is especially suitable for severe environment. With DC brushless motor, the pump could drive YZ35-13 and KZ35 pump head to provide a high flow rate from 100mL/min to 11000mL/min. With the calibration function, the pump could dispense the fluid with high accuracy and precision. And the dispensing volume is 100mL-999L.
Flow rates：100ml/min-11000ml/min
Max. Number of Channels：2
Main Functions and Features
- Applicable Pump Head: YZ35-13, KZ35
- Back suction: Prevent dripping of liquid when dispensing a certain liquid volume
- Operating code: Membrane keypad to set parameters and operation
- Control mode: Pump can be controlled internally through membrane keypand or externally through external control modules.
- Prime function: Fast filling or emptying at full speed
- Power-off function: Return to previous state when power on
- Calibration: The flow rates and dispensing volume can be calibrated to improve the accuracy.
- Foot switch: Control Start/Stop of the pump.
- High IP rating: suitable for severe environment.
- Dispensing function: dispense the fluid at desired volume, dispensing time and batch cycles.
Technical Specifications
- Flow Rates: 100 – 11000 ml/min
- Dispensing Volume: 100ml to 99.9 L
- Speed: 10 – 600 rpm, CW/CCW
- Speed resolution: 1 rpm
- Copy No.: 0 – 9999, ‘0’ means unlimited cycles
- Pause Time: 1 second to 99.9 minutes
- Back Suction: 0 to 9.9 circles, resolution is 0.1 circle
- External Control: Start/Stop, Direction, speed control (0 – 5V, 0 – 10V, 4 – 20 mA, 0 – 10kHz, external control module optional)
- Speed output: 125Hz - 7.5kHz corresponding to 10-600 rpm
- Start/stop output: OC gate signal
- Direction output: OC gate signal
- Communicaiton: RS485
- Power Supply:AC 220V±10%/300W or AC 110V±10%/300W
- Operating Conditions: Temperature: 0 – 40 ℃,
- Relative Humidity: <100%
- Dimension (L×W×H): 360×215×243
- Weight: 12 kg
- IP Rating: IP65
Other parameters
| Pump Head | Tubing | Flow Rates(mL/min) | Weight(kg) |
| YZ35-13 | 73#, 82# | 11000 | 13.65-15.3 |
| 2×YZ35-13 | 73#, 82# | Single channel 11000 | 13.65-15.3 |
| KZ35 | 73#, 82# | 11000 | 15.7-19.4 |
| 2×KZ35 | 73#, 82# | Single channel 11000 | 15.7-19.4 |
